Design
| Number of fans |
4 |
| Chassis type |
Rack (4U) |
| Redundant fans support |
Y |
| Form factor |
4U |
Networking
| Copper ethernet cabling technology |
1000BASE-T |
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Storage
| Hot-swap hard drive bays |
Y |
| Number of hard drives supported |
12 |
Memory
| Maximum internal memory |
6000 GB |
| Supported memory types |
DDR4-SDRAM, DDR3-SDRAM |
Power
| Power supply |
1400 W |
| Number of redundant power supplies installed |
4 |
| Number of redundant power supplies supported |
2 |
Processor
| Maximum cache |
512 MB |
| Number of processors supported |
4 |
Technical details
| PCI Express x4 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
3 |
| PCI Express x8 (Gen 3.x) slots |
6 |
Expansion slots
| PCI Express x4 slots |
1 |
| PCI Express x8 slots |
6 |
| PCI Express x16 slots |
3 |
Additionally
| Ethernet LAN connection |
Y |
| Chipset |
Intel C602J |
| Ethernet LAN (RJ-45) ports quantity |
5 |
Rack Mountable, 4RU, Intel C602J, 96x DIMM, 12GBPS SAS, 512MB FBWC, hot-swap, RAID 0/1/5, G200e, 10-Gigabit Ethernet
<b>Superior Performance for Mission-Critical Workloads</b>

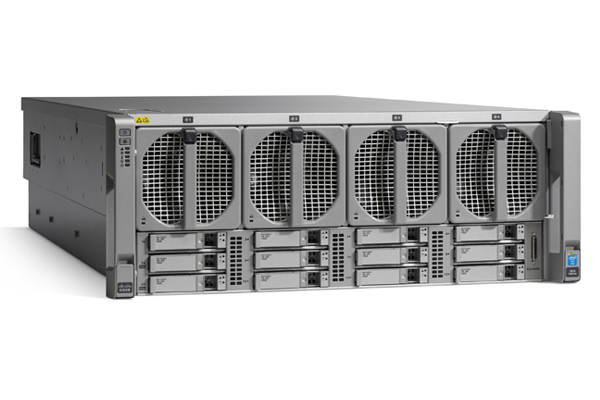

The Cisco UCS C460 M4 Rack Server offers exceptionally high performance and reliability to power the most compute- and memory-intensive, mission-critical enterprise applications and virtualized workloads.
The C460 M4 Rack Server is well suited for the most demanding enterprise and mission-critical workloads, large-scale virtualization, and database applications.
Either as a standalone server or in UCS-managed operations, customers gain the benefits of this server's high-capacity memory when very large memory footprints are required. Examples include:
- SAP workloads
- Database applications and data warehousing
- Large virtualized environments
- Real-time financial applications
- Java-based workloads
- Server consolidation
