Operational conditions
| Operating altitude relative to sea level |
3050 |
Technical details
| Compliance industry standards |
•Regulatory: CE Marking (89/366/EEC and 73/23/EEC) •Safety: UL 1950, CAN/CSA-C22.2 No. 950, EN 60950, IEC 60950 •Electromagnetic Emissions: FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZS 3548 Class A, VCCI Class A, EN55024, EN50082-1 |
Ports & interfaces
| Supported protocols |
The NAMs provide RMON2 statistics on several-hundred unique protocols, including those defined in RFC 2896, and several Cisco proprietary protocols. In addition, the NAMs can automatically detect unknown protocols and users have the flexibility to customize the protocol directory. \nExamples of Protocols Supported by the NAMs for RMON2 Statistics: \n•TCP and UDP over IP including IPv6 \n•VoIP including SCCP(Skinny), RTP/RTCP, MGCP, SIP \n•Mobile IP protocols (Both IP in IP and GRE tunnelling) \n•Storage area network (SAN) protocols including Fiber Channel over TCP/IP \n•AppleTalk, DECnet, Novell, Microsoft \n•Database protocols including Oracle, Sybase \n•Bridge and router protocols \n•Cisco proprietary protocols \n•Unknown protocols by TCP/UDP ports, RPC program numbers, etc |

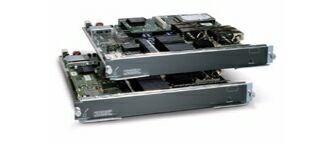

CATALYST 6500 NETWORK ANALYSIS MODULE
Second-Generation, High-Performance Network Analysis Modules for Cisco Catalyst 6500 Series and Cisco 7600 Series
Cisco Systems®, the worldwide leader in networking for the Internet, addresses the need for multiservice network management and traffic monitoring in high-capacity switched Ethernet LANs and routed WANs with a new generation of the Network Analysis Module (NAM) for Cisco® Catalyst® 6500 Series switches and Cisco 7600 Series routers. The NAM is an integrated and powerful traffic monitoring service module that occupies a single slot in the chassis and enables network managers to gain application-level visibility into network traffic with the ultimate goal of improving performance, reducing failures, and maximizing returns on network investments.
The second-generation NAMs are available in two hardware versions, NAM-1 and NAM-2, and offer high performance monitoring and crossbar (fabric) connectivity to meet diverse network analysis needs in scalable switching and routing environments running at gigabit speeds. The NAMs come with an embedded, Web-based traffic analyzer, which provides full-scale remote monitoring and troubleshooting capabilities that are accessible through a Web browser.
