Technical details
| Built-in barcodes |
UPC-A, QR Code, PDF417, ITF-14, EAN8, EAN13, UPC-E, Code 93, Code 39, CODABAR (NW-7) |
| Buffer size |
4 KB |
| Autocutter durability |
2 million cuts |
Paper handling
| Maximum roll diameter |
80 mm |
| Supported paper width |
80/72/54.5/54 mm |
Print technology
| Column capacity |
83mm:80/71, 80mm:72/64, 60mm:54/48, 58mm:52/46 |
| Character size |
1.5 x 3 mm |
| Print speed |
300 mm/sec |
| Type |
POS printer |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN connection |
N |

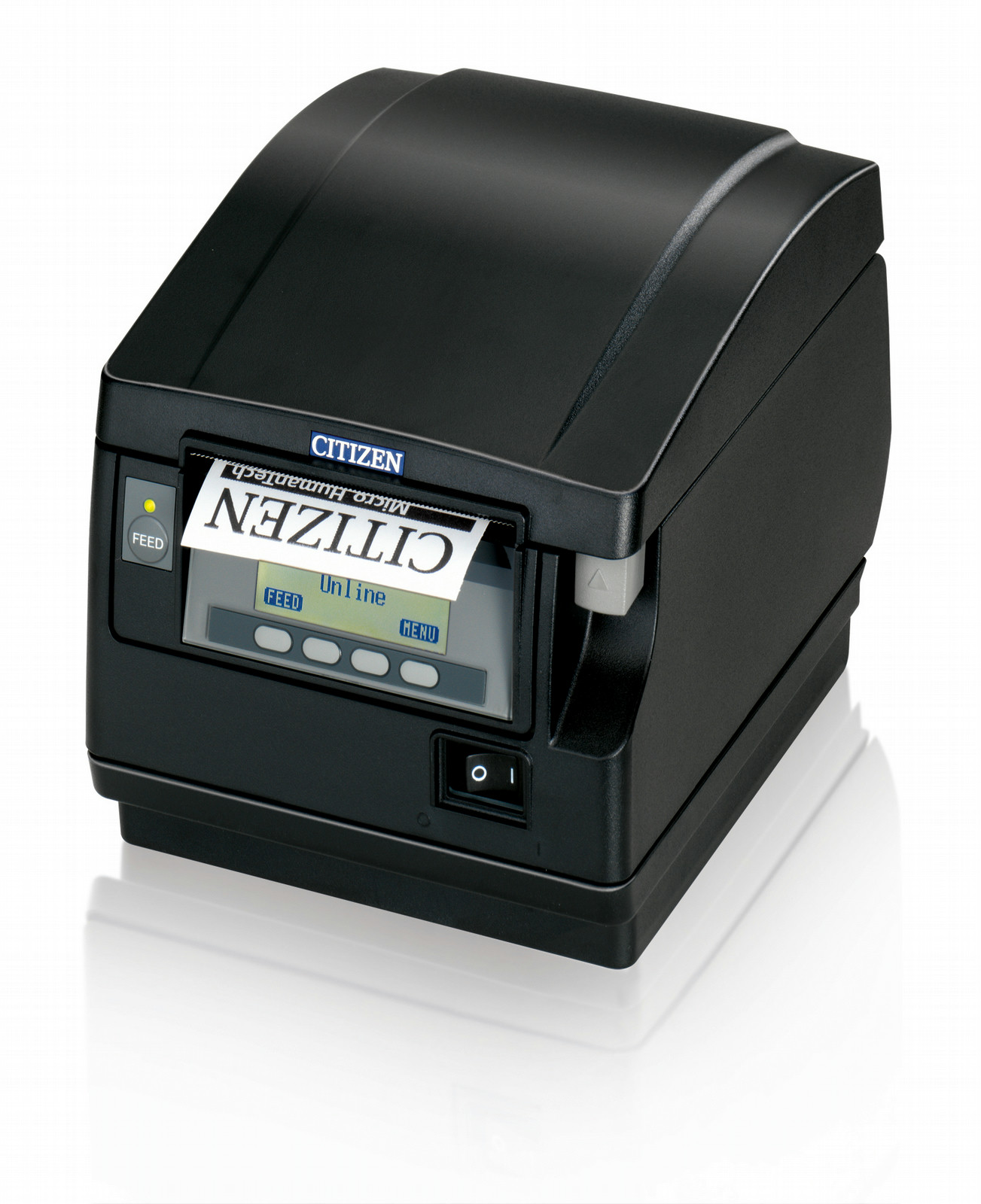

CT-S851 - 203 x 203 dpi, 80/72/54.5/54 mm, 300 mm/s, LCD, 4K buffer, 150VA, 2.1 kg
receipt printer, front exit, direct thermal, 8 dots/mm (203 dpi), media width (max.): 83mm, print width (max.): 80 mm, 300 mm/s, incl.: cutter, LCD Display, ESC/POS, power supply unit, order separately: interface cable, interface, colour: black
The CT-S851 represents the industry's first "Front Exit" and "Intelligent" POS printer with a back lit graphic LCD display; which includes an editor to customize display messages – a great value-add for end users. The CT-S851 is ideal for a variety of applications and any environment. At 300mm/second print speed, it is the "Next Best POS Printing Solution" when a front exit receipt is required. The CT-S851 is from your reliable friendly partner: Citizen Systems America.
<b>Features</b>
- A truly, unique printer: the industry’s first Front-Exit POS printer with a backlit graphic LCD display communicates with you
- The world’s fastest, most reliable, easiest to configure and customize POS printer
- 300mm/sec providing the fastest printing results for customers
- Longer cutter life delivers lower maintenance costs
- Greater reliability delivers longer life & lower maintenance costs
- Wider paper width allows printing of additional information & larger fonts
- USB standard meets market standardization requirements
- 2D/PDF417 bar code support allows wider applications
- Built in buzzer provides audible alert without adding extra cost devices
- Built in power supply eliminates unsightly “brick” and frees up space
- Printer drivers included are: Windows XP (32 and 64 bit), Windows Vista (32 and 64 bit), Java POS, OPOS and CUPS
- Desktop
- Same footprint as TM-T88
<b>LCD Display</b>
- LCD indicates the printer's status, button names, types of errors, and messages
- Installation of vertical or wall-mount, memory switch settings invert the LCD icons
- LCD and LED auto power OFF function
- Easy maintenance of printer head and cutter with using of LCD and LED messages
<b>LED</b>
- Green: Power is on
- Red: Operates in special modes or in errors
- Orange: Paper is low (paper near-end) or print head is hot
<b>Operation Panel</b>
- FEED button: To feed the paper
- MENU button: Press and hold this button to access the memory switch setting mode
- PAPER LOW icon: It disappears when the paper roll is near its end
- LOCK icon: It displays when the MENU button is inoperative
