Design
| Integrated USB cable |
Y |
| USB cable length |
0.05 m |
System requirements
| Linux operating systems supported |
Ubuntu 14.04 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Performance
| Maximum resolution (HDMI) |
3840 x 2160 pixels |
| USB connector gender |
Male |
| Resolution at refresh rate |
Note that interlaced modes and reduced blanking modes are not supported. |
| DVI output |
N |
| Refresh rate at maximum resolution |
30 Hz |
| DisplayPorts output |
N |
| Mirror display mode |
Y |
| Extended display mode |
Y |
| HDCP |
Y |
| Number of displays supported |
1 |
| Chipset |
DL-5500 |
| USB connector type |
USB Type-A |
| USB version |
3.0 (3.1 Gen 1) |
Packaging content
| Drivers included |
Y |
| Software CD |
Y |
| Quick installation guide |
Y |

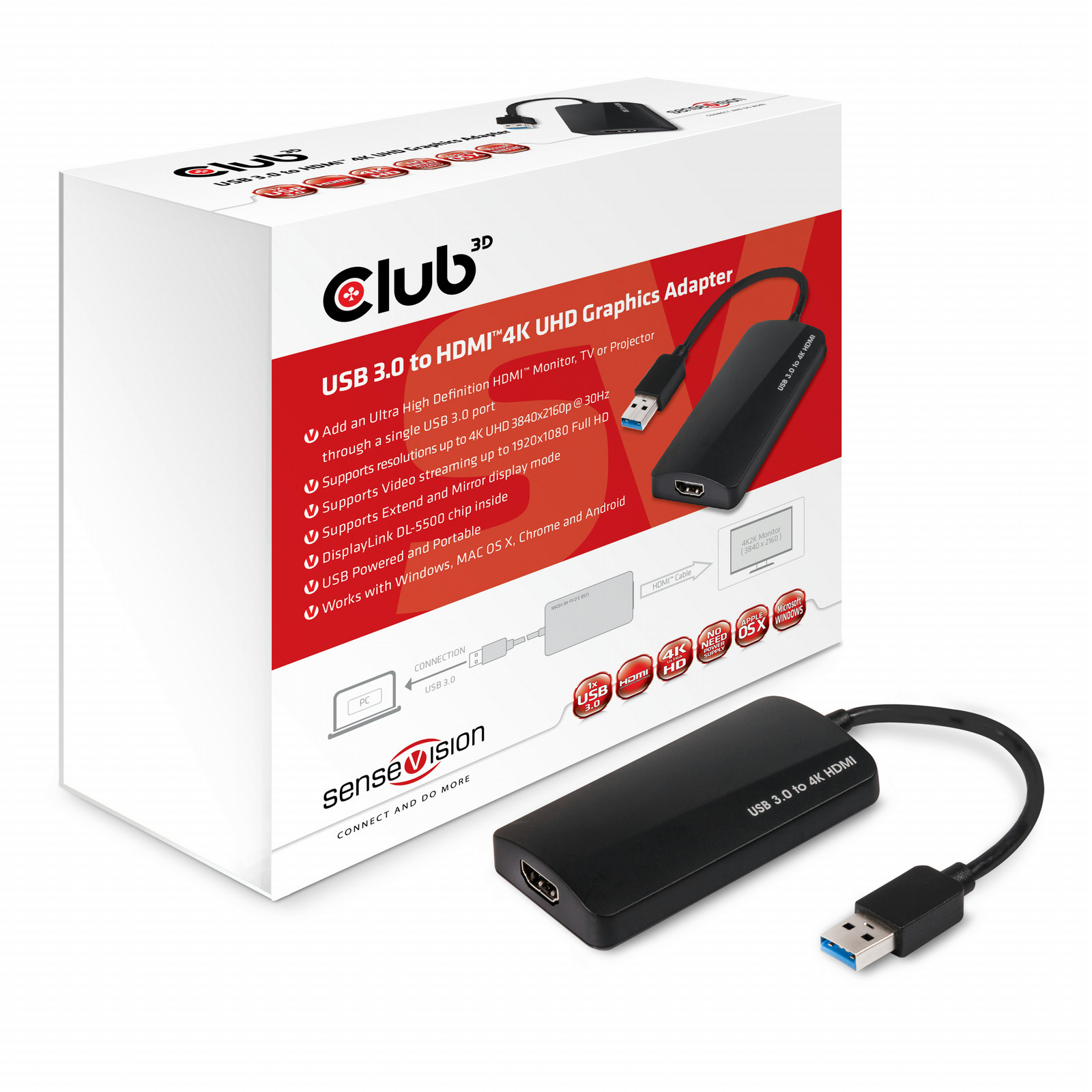

The SenseVision USB 3.0 to HDMI™ 4K UHD Graphics Adapter is the easiest way
to add an Ultra High Definition HDMI™ Monitor, T V o r P rojector t o a n e xisting
Desktop or Laptop via a single USB 3.0 Port. It works as a USB Powered external
Video Card with a compact design and is an ideal solution for anyone who wants
to boost their productivity by expanding their desktop space.
nstalled, the USB attached monitor can be used immediately
without rebooting your system. The CSV-230H al-lows access to
4K UHD Displays for legacy PCs. Up to 6 USB displays are supported
simultaneously under Windows. Max 2 under Apple OS X While the USB
3.0 to HDMI™ 4K UHD Graphics Adapter is designed for USB 3.0, it’s backwards
compatible with USB 2.0
