Ports & interfaces
| RJ-45 ports quantity |
2 |
| DC-in jack |
Y |
Technical details
| Maximum transfer distance |
180 m |
| Type |
Console transmitter & receiver |
Additionally
| RS-232 port |
2 |
| AC adapter bundled |
Y |

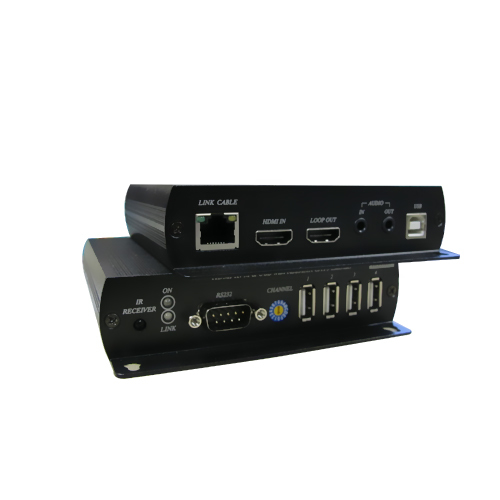

HDMI, KVM, USB & RS232/IR Extender Up to 180M over IP
The Comprehensive CKE-H180IP HDMI USB KVM Over IP Extender with Audio, RS232, and IR provides remote KVM (USB keyboard, USB mouse, and HDMI monitor) access to a USB computer or HDMI source up to 590 feet over a Gigabit network using a single CAT5e/6 cable. Each CKE-H180IP consists of a local unit that connects to a computer or HDMI source, and a remote unit that connects to a monitor, mouse, keyboard, speaker, microphone, and other USB devices. The local and remote units can be connected together for a Point-to-Point connection via CAT5e/6 cable. Unit is covered by our 2 year warranty.
- Extend HDMI, RS232, IR and USB signals over one CAT5E/CAT6 cable
- Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) 32bpp@ 60 Hz
- Transmission range up to 492ft over CAT5e, 590ft over CAT6
- Supports 2-way RS232 commands at baud rate 115200 (control software on a PC, or other automated control system hardware) to control devices attached to the matrix using RS232. Full Duplex data communicatio
- Transmitter unit has HDMI loop output
- Receiver unit with 4 ports USB devices (1 port USB 1.1 & 3 Port USB 2.0), to extend USB peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
- Support point to point and multiple source devices to multi-display connections via Gigabit network switch
- Built in Bi-Directional audio
- Built in Bi-Directional IR
- Perfect for control remote machines and security monitoring systems, digital signage applications
- 2 Year Warranty
