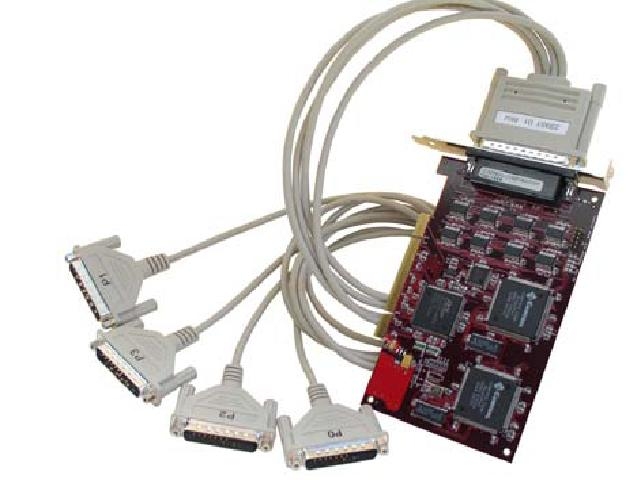

Comtrol 99020-8 RocketPort Plus Universal Quadcable 4-Port DB-25 interface cards/adapter

Comtrol 99020-8 RocketPort Plus uPCI Octa RJ45, Universal PCI design supporting 3.3 and 5.0 Volt PCI bus architectures. The Comtrol RocketPort Plus uPCI Quad/DB25 serial port expansion card provides four “native” serial ports utilizing a single PCI card slot and is compatible with all current 3.3 and 5.0 Volt PCI bus architectures. The DB25 serial ports support RS-232 serial communications at speeds up to 921 Kbps. Every RocketPort serial card features the high-performance RocketPort ASIC chip, consisting of a dedicated 44MHz processor that minimizes host CPU utilization and larger transmit-and-receive buffers than those of 16550 UART chips used in standard PC serial ports and low-end serial cards. RocketPort ASIC technology enables these cards to outperform other serial expansion cards by handling the transmission of large amounts of data more reliably and efficiently. Additionally, RocketPort products do not require the assignment of interrupts, simplifying installation and eliminating conflicts with other server cards.

Features

- Universal PCI design supporting 3.3 and 5.0 Volt PCI bus rchitectures - ensures compatibility with all current PCI bus architectures
- I/O mapping capabilities - simplifies installation, eliminates memory conflicts, and enables plug-and-play compatibility
- Multiport serial expansion using a single slot - maximizes host expansion capabilities; adds four COM ports using only one slot
- On-board dedicated 44MHz RISC processor - minimizes "host" CPU utilization
- RS-232 communications support - enables transmit-and-receive speeds
up to 921 Kbps
- DB25 fan-out cable - provides cost-effective, compact, and flexible
serial connections
- Transmit buffers 16 times larger, and receive buffers 64 times larger, than a 16550 UART - helps ensure smooth, efficient data transfer
- Robust driver support - enables card to work seamlessly with popular
operating systems
