Technical details
| Auto MDI/MDI-X |
Y |
| Serial ports quantity |
4 |
| Baud rate |
230 Kbit/s |
| Surge protection |
15 kV |
| Flow control support |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Operational conditions
| Maximum operating altitude |
3048 m |
Power
| Power consumption |
500 mA |
| Input frequency |
47 - 63 Hz |
| Input voltage |
90 - 264 V |
Protocols
| Supported network protocols |
ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
16 |
| Internal RAM |
16 MB |
10/100BASE-T, 16 MB SDRAM, 8 MB Flash, 292 x 38 x 140 mm, 1.11 kg, 4.5 W, 9 - 30 V DC, 90 - 264 V AC, 47 - 63 Hz, 500 mA 15 KV surge protection, 16 x RJ-45, RS-232/RS-422/RS-485, 300 bps - 230 Kbps, Auto MDI/MDI-X

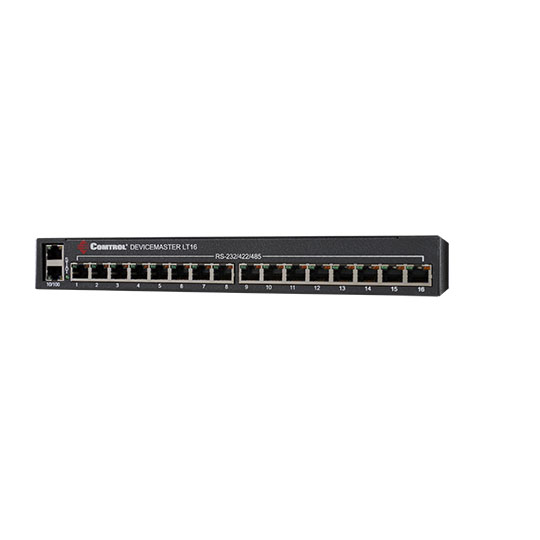

The DeviceMaster LT16 provides 16 RS232/422/485 software selectable serial ports in a compact design perfect for POS, hospitality, machine builders, or any application where rugged design and performance is critical but space is at a premium.
- No serial cable distance limitations
- Digi International Inc. device server form factor and RS-232 pinout compatible
- RS-232/422/485 software selectable interfaces
- Dual 10/100 Fast Ethernet ports
- Application compatibility supports native COM, TTY, or TCP/IP socket communication modes
- Web-based or Windows configuration
- Wide operating temperature (0° to 60°C)
- Dual Ethernet ports for daisy-chaining devices
- Low profile - compact housing facilitates easy installation and mounting
- PortVision DX
- Wide input power range
- SSL & SSH management, SSL serial data stream encryption
- Support for the latest Windows operating systems (including Windows® 10) and Linux kernels
- LED indicators for power and port status
- Real-time email event notification
The Comtrol DeviceMaster 16-port device server is designed for network-enabling serial communications devices. When used with the included NSLink™ driver software and a host PC, the DeviceMaster enables placement of COM or TTY ports anywhere on an Ethernet network or across the Internet. In applications where connecting legacy serial devices to a PC without software changes is a requirement, a pair of DeviceMaster RTS units can be used to create a point-to-point serial tunnel across the network that seamlessly transfers serial data via TCP or UDP socket connections.
