Data transmission
| MAC address table |
8000 entries |
Networking
| Auto MDI/MDI-X |
Y |
| 10G support |
N |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
65 W |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Fast Ethernet (copper) ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
2 |
Performance
| Packet buffer memory |
0.125 MB |
Design
| Safety |
IP30 |
| Rack mounting |
N |
Management features
| Quality of Service (QoS) support |
Y |

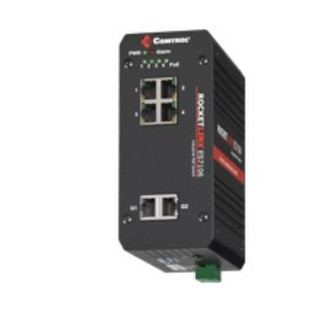

Unmanaged PoE Industrial Switch, 4 x 10/100BASE-TX PoE RJ-45, 2 x 10/100/1000BASE-TX RJ-45, 12/24VDC
The RocketLinx ES7106-VB is an IEEE 802.3af compliant PoE switch designed for connecting a wide range of industrial PoE equipment such as IP surveillance cameras, wireless access points, point-of-sale systems, and other devices utilizing 12/24V vehicle power sources or 24V standard industrial power.
The RocketLinx ES7106-VB is equipped with four 10/100BASE-TX PoE injector ports, with each port delivering power up to 15.4W, and two 10/100/1000BASE-TX (Gigabit) Ethernet uplink ports for transferring data to the network. The ES7106-VB supports QoS, which ensures high quality video traffic transmission by adjusting the data transfer priority. The ES7106-VB features convenient wiring with a standard 4-pin industrial terminal block for power input and a fault relay alarm contact output. Additionally, each Ethernet port has a Port Link Alarm, which can be confi gured to automatically trigger on connection issues, warning administrators of abnormal operating conditions and ensuring quick resolution to network issues.
In addition to advanced PoE and networking capabilities, the ES7106-VB is designed for industrial applications and deployment in harsh conditions. With an IP30 rigid aluminum housing and extended operating temperature range, consistent operation is ensured in environments such as mass transit vehicles, factories, and outdoor settings.
