Data transmission
| MAC address table |
2000 entries |
| Store-and-forward |
Y |
| Jumbo frames |
9000 |
| Packet forwarding rate (1 Gbps) |
1488100 pps |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
14880 pps |
Performance
| Buffer size |
1 KB |
| Maximum cable length |
100 m |
| Auto-negotiation |
Y |
| Stackable |
N |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Cable types supported |
Cat5e, Cat6 |
| 10G support |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
110 W |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power protection features |
Over current, Reverse polarity |
| Power over Ethernet (PoE) ports quantity |
6 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
6 |
| Fiber ports quantity |
1 |
| Terminal block port |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-TX, 10BASE-T |
Packaging data
| Terminal block included |
Y |
10/100/1000BASE-TX, IP30, DIN rail, 144 x 55 x 105 mm, 0.8 kg, IEEE 802.3/802.3u/802.3ab/802.3z/802.3af/802.3at/802.3x, 2 K MAC, 4 x PoE+, PoE, 110 W, 12 - 36 V DC, terminal block

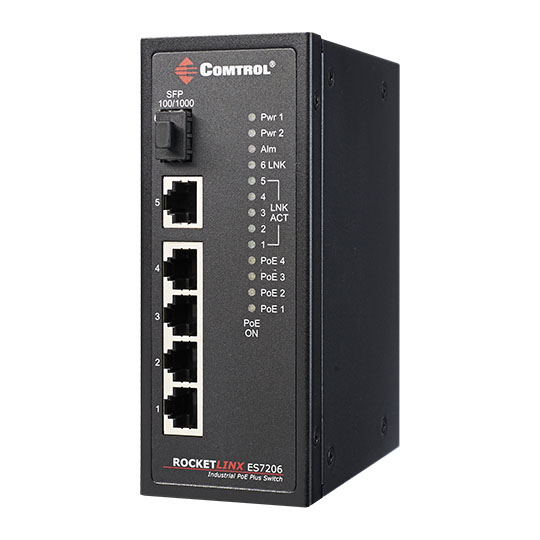

Unmanaged PoE Plus Industrial switch, with four Gigabit 802.3af/at PoE ports, one copper Gigabit uplink port and one Gigabit fiber SFP port. This rugged 6-port Gigabit PoE Plus Switch is built for harsh conditions and will operate from -40°C to 75°C.
The RocketLinx ES7206-XT is an industrial-grade, 802.3af/at PoE Plus switch designed for integration of mission-critical PoE devices in IP security, access control, in-vehicle, and intelligent transportation systems.
The ES7206-XT features four Gigabit speed, high-power 802.3af/at ports, Gigabit copper and SFP fiber uplink ports, and a full 120W power budget for maximizing PD power delivery to devices such as PTZ cameras.
A compact, DIN rail mount housing, extended operating temperature, and wide 12-36V input voltage range enable the ES7206 to satisfy the widest variety of PoE integration requirements.
