Security
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
| SSH/SSL support |
Y |
Management features
| Quality of Service (QoS) support |
Y |
Networking
| DHCP client |
Y |
| DHCP server |
Y |
| 10G support |
N |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Ports & interfaces
| Fast Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Console port |
RJ-45 |
| Combo SFP ports quantity |
2 |
Protocols
| Supported network protocols |
IPv4, IPv6 |
| Management protocols |
SNMP |
Design
| Rack mounting |
N |
| Safety |
IP30, IEC 60950/EN60950, CSA C22.2 No. 60950/UL60950 |
Data transmission
| Store-and-forward |
Y |
| Switching capacity |
32 Gbit/s |
| Number of VLANs |
256 |
| Throughput |
8.3 Mpps |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
80 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Y |
Performance
| Packet buffer memory |
0.125 MB |
Managed PoE Industrial Switch, Layer 2+, 8 x 10/100BASE-TX PoE RJ-45, 2 x 10/100/1000BASE-TX RJ-45, IEEE 802.3at
PoE Plus Supporting High Power Devices

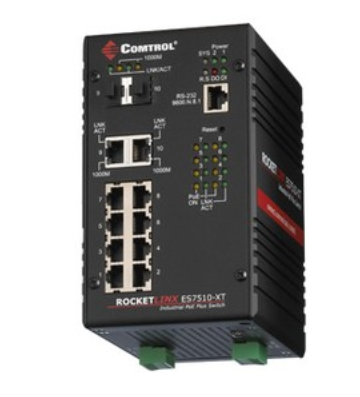

The Comtrol RocketLinx ES7510-XT managed industrial PoE Plus switch is designed to meet the high power and advanced management needs of critical traffic applications such as real-time IP video surveillance and wireless communication utilizing outdoor rated IP cameras and high power IEEE 802.11 access points. Featuring a rugged design for harsh environments, intuitive web, CLI, SNMP management options, power scheduling and eight fully compliant IEEE 802.3at PoE injector ports, the ES7510-XT is easily installed in industrial settings and traffic cabinets supporting even the most power intensive devices such as IP cameras with heaters and pan/tilt/zoom controls.
Innovative Power Control
In addition to functioning as a PoE power source, the ES7510-XT includes advanced device controls, ensuring that power consumption does not exceed parameters defined by the user. This includes power budget control functions to limit power output on devices not reporting correct consumption rates and device priority options to guarantee power to critical devices while avoiding power supply overloads.
Management and Security
The RocketLinx ES7510-XT is equipped with full Layer 2+ management capabilities to provide the most flexible network configuration and control. Features like Link Aggregation Control Protocol allow grouping of multiple ports to enhance bandwidth and provide load balancing while Port-Based VLAN, QoS, IGMP Snooping, and Rate Control features enable optimum control over the network environment. In addition to the full array of management capabilities, the ES7510-XT also supports the most advanced security features to protect the network and guarantee secure, reliable data transmission. Fault relay and e-mail notification of event alarms, DHCP supporting IP and MAC binding, IEEE 802.1X network access control, SSH, and many other controls are included to make secure administration and management a simple task.
