Management features
Multicast support |
Y |
MIB support |
MIB-II, Bridge MIB, Ethernet-Like MIB, VLAN MIB, SNMP MIB, PoE MIB, RMON, LLDP MIB, Trap MIB, Private MIB |
Quality of Service (QoS) support |
Y |
Web-based management |
Y |
Data transmission
MAC address table |
16000 entries |
Store-and-forward |
Y |
Switching capacity |
12.8 Gbit/s |
Number of VLANs |
256 |
Number of queues |
8 |
Throughput |
1.48888 Mpps |
Networking
VLAN support |
Y |
IGMP snooping |
Y |
Auto MDI/MDI-X |
Y |
Link aggregation |
Y |
Spanning tree protocol |
Y |
Flow control support |
Y |
DHCP client |
Y |
DHCP server |
Y |
10G support |
N |
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget |
720 W |
Power over Ethernet plus (PoE+) ports quantity |
24 |
Power over Ethernet (PoE) |
Y |
Security
SSH/SSL support |
Y |
Access Control List (ACL) |
Y |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
24 |
Console port |
RS-232 |
Combo SFP ports quantity |
4 |
Fast Ethernet (copper) ports quantity |
24 |
Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
Performance
Packet buffer memory |
4 MB |
Protocols
Management protocols |
SNMP v1/v2c/v3 |
Design
Safety |
IP31, IEC 60950/EN60950, CSA C22.2 No. 60950/UL60950 |
Form factor |
1U |
Rack mounting |
Y |
Other features
Power LED |
Y |
Supported protocols |
IGMP Snooping v1/v2/v3, IGMP Query v1/v2, SNMP MIB, NTP, HTTP, HTTPS, SSL, SSH, GMRP, GVRP, IEEE1588 PTP, DHCP Option 82, Syslog, RMON, LACP, RSTP, STP, LLDP |
Managed PoE Industrial Switch, 24 x 10/100BASE-TX PoE RJ-45, 4 x 10/100/1000BASE-TX RJ-45 / SFP Combo, 1U

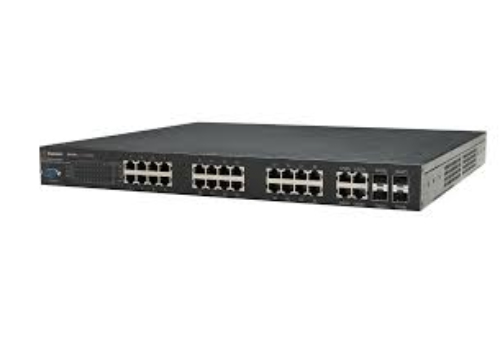

The RocketLinx ES7528 is a fully 802.3at compliant PoE Plus rack mount switch that features 24 10/100BASE-TX Ethernet ports and 4 Gigabit Uplink/SFP Combo ports. This switch is designed for highly critical PoE applications such as real time IP video surveillance and wireless communications systems.
All of the fast Ethernet PoE injector ports can deliver 15.4W by IEEE 802.3af or 30W by the latest high power PoE IEEE 802.3at standard. This flexibility makes the ES7528 the perfect solution for upgrading existing video network infrastructures to a powerful IP video surveillance network.
The 4 Gigabit Ethernet ports provide high speed uplinks to higher level backbone switches while advanced ring technology enables the ES7528 to aggregate up to 12 fast Ethernet rings and 2 gigabit rings providing high quality data transmission with less than 5ms network recovery time. To ensure traffic switching without data loss and blocking, the ES7528 provides a 12.8G backplane with integtrated non-blocking switching function.
With advanced Layer 2 management features including IGMP Query/Snooping, DHCP, 255 VLAN, QoS, LACP, LPLD, and 24 PoE Plus ports, the RocketLinx ES7528 stands out from other PoE switches as the optimal solution for high density PoE and video surveillance applications.
