Data transmission
| MAC address table |
4096 entries |
| Throughput |
1.49 Mpps |
Networking
| Broadcast storm control |
Y |
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
5 |
Performance
| Packet buffer memory |
0.024 MB |
Design
| Safety |
IP31, IEC 60950/EN60950, CSA C22.2 No. 60950/UL60950 |
| Rack mounting |
N |
Management features
| Quality of Service (QoS) support |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

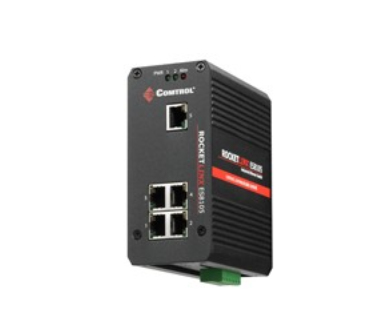

Unmanaged Industrial Ethernet Switch, 5 x Gigabit Ethernet RJ-45
The RocketLinx ES8105-GigE is a 5-port industrial-grade full Gigabit Ethernet Switch combining the performance of Gigabit Ethernet ports and plug-and-play configuration with a rugged design for deployment in harsh environments. The ES8105-GigE is an ideal solution for industrial applications requiring a reliable, high bandwidth capable switch.
In addition to high speed data transmission, the ES8105-GigE ensures the delivery of critical data via support for QoS and broadcast storm filtering. Further efficiency is realized through the 9.6K byte jumbo frame support, that reduces overhead and increases throughput.
Consistent, reliable performance and uninterrupted operation are just as critical in the industrial environment as the switch’s ability to quickly and efficiently handle large volumes of data. The ES8105-GigE features dual power inputs for redundancy and includes a relay alarm for instant notification of data or power failure. Further protecting the switch is its IP-31 rated aluminum housing, providing uninterrupted operations in industrial surroundings.
