Data transmission
| Switching capacity |
3.2 Gbit/s |
| Throughput |
1.49 Mpps |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Fast Ethernet (copper) ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Design
| Safety |
IP31, IEC 60950/EN60950, CSA C22.2 No. 60950/UL60950 |
| Rack mounting |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Unmanaged Industrial Ethernet Switch, 5 x Fast Ethernet RJ-45, 3.2Gbps, Alarm Relay Output, Aluminum Metal Case, DIN Rail / Wall Mount

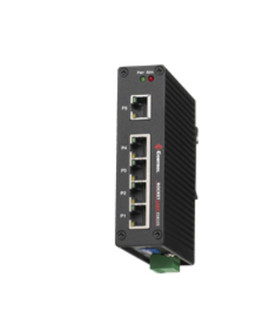

The RocketLinx ES8105 is a compact 5-port Fast Ethernet industrial switch featuring a 3.2Gbps switch fabric with Store and Forward technology, and housed in a slim industrial enclosure to save rail or panel space in compact system designs.
For installation in hazardous or industrial environments, the RocketLinx ES8105 features an extended operating temperature range (-25° to 70° C) and provides IP31 protection to guard against dust and water.
The ES8105 is an unmanaged switch that requires no user setup and immediately starts operating as soon as power is applied for true “plug-and-play” operation. The RocketLinx ES8105 supports 18 to 27VAC or 18 to 32VDC power inputs and provides built-in reverse power polarity protection.
For ease-of-maintenance, the RocketLinx ES8105 has one alarm relay that is controlled by a DIP switch to assist engineers with onsite notifications in the case of link-down events.
RocketLinx Reliability
With the 1.5KV Hi-Pot isolation protection, CE/FCC/UL regulatory approvals, high MTBF, a 5-year warranty, and rugged aluminum design, the RocketLinx ES8105 is the ideal switch solution for industrial and hazardous environments.
