Data transmission
| Store-and-forward |
Y |
| Switching capacity |
3.2 Gbit/s |
| Throughput |
1.49 Mpps |
Optical fiber
| Fiber type |
Multi-mode |
| Link budget |
11 dB |
| Transmission distance (max) |
2 km |
| Wavelength |
1310 nm |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Fiber ports quantity |
1 |
| Fast Ethernet (copper) ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Design
| Safety |
IP31 |
| Rack mounting |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

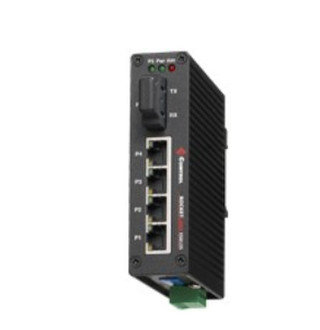

Unmanaged Industrial Switch, 4 x 10/100BASE-TX RJ-45, 1 x 10/100BASE-FX FC, DIN Rail / Wall Panel
The RocketLinx ES8105 is a 4-port Fast Ethernet industrial switch with one 100BASE-FX fiber port. The fiber uplink feature increases the transmission distance to 2KM.
The RocketLinx ES8105F-M is housed in a slim industrial enclosure to save rail or panel space in compact system designs. For installation in hazardous or industrial environments, the RocketLinx ES8105F-M operates within an extended temperature range (-25° to 70°C) and provides IP31 protection to guard against dust and water.
The ES8105 is an unmanaged switch that requires no user setup and immediately starts operating as soon as power is applied for true “plug-and-play” operation. The RocketLinx ES8105 supports 18 to 27VAC or 18 to 32VDC power inputs and provides built-in reverse power polarity protection.
For ease-of-maintenance, the RocketLinx ES8105F-M has one alarm relay that is controlled by a DIP switch to assist engineers with onsite notifications in the case of link-down events.
RocketLinx ES8105F-M Reliability
With the 1.5KV Hi-Pot isolation protection, CE/FCC/UL regulatory approvals, high MTBF, a 5-year warranty, and rugged aluminum design, the RocketLinx ES8105 is the ideal switch solution for industrial and hazardous environments.
