Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
32 Gbit/s |
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Number of multicast groups filtered |
256 |
| Packet forwarding rate (10 Mbps) |
14880 pps |
Networking
| Private VLAN |
Y |
| Port mirroring |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Spanning tree protocol |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Full duplex |
Y |
Security
| IP-MAC-Port binding |
Y |
| Access Control List (ACL) |
Y |
Optical fiber
| Fiber type |
Single-mode |
| RX sensitivity |
-34 dB |
| Link budget |
19 dB |
| Transmission distance (max) |
30 km |
| Wavelength |
1310 nm |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
6 |
| Fiber ports quantity |
2 |
| Terminal block port |
Y |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Power
| Power consumption (max) |
15 W |
| Input voltage |
10 - 60 V |
Performance
| Maximum cable length |
100 m |
| Auto-negotiation |
Y |
| Stackable |
N |
Packaging data
| Terminal block included |
Y |
Power over Ethernet (PoE)
| Power protection features |
Reverse polarity |
| Power over Ethernet (PoE) |
N |
6 x RJ-45 10/100BASE-TX, 2 x fiber port 100BASE-FX Single-Mode, IP31, DIN rail, 550 x 149 x 131 mm, 885 g, Cat 3/4/5/5e, 1310 nm, IEEE 802.1ab/802.1D/802.1p/802.1Q/802.1s/802.1x, 802.3/802.3ad/802.3x/802.3u. 10 - 60 V DC, 15 W

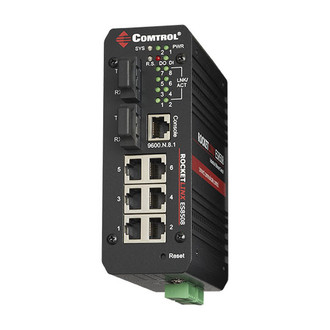

Managed Industrial 8-Port Fiber Ethernet Switch.
The RocketLinx ES8508F-XT is an industrial-grade managed 8-port switch with built-in fiber ports that features advanced Layer 2 management, security, and system reliability for deployment in extreme and mission critical networking applications.
The ES8508F-XT design incorporates the latest managed switch technologies to ensure reliable, high-bandwidth data communications including a 32Gbps switch fabric for real-time non-blocking data transmission, redundant network topology supporting ring, RSTP and MSTP, and a high performance ARM9 processor with an embedded hardware watchdog timer. These features combined with a rugged IP-31 grade housing and extended operating temperature guarantee performance and stability for traffic, rail, and other demanding applications.
