Networking
| DHCP server |
Y |
| 10G support |
N |
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| Full duplex |
Y |
Performance
| Firmware upgradeable |
Y |
| Packet buffer memory |
0.125 MB |
Ports & interfaces
| Fast Ethernet (copper) ports quantity |
7 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity |
7 |
| Console port |
RJ-45 |
| Combo SFP ports quantity |
3 |
Protocols
| Supported network protocols |
IPV6 |
| Management protocols |
SNMP V1/V2c/V3, HTTP/HTTPS, Telnet/SSH |
Management features
| Web-based management |
Y |
| Multicast support |
Y |
| MIB support |
MIB-II, bridge MIB, VLAN MIB, IGMP MIB, Ethernet-like MIB, Comtrol private MIB, RMON |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
Design
| Rack mounting |
N |
| Safety |
IP31, IEC 60950/EN60950, CSA C22.2 No. 60950/UL60950 |
Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Switching capacity |
32 Gbit/s |
| Number of VLANs |
256 |
| Throughput |
1.49 Mpps |
Optical fiber
| Transmission distance (max) |
30 km |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

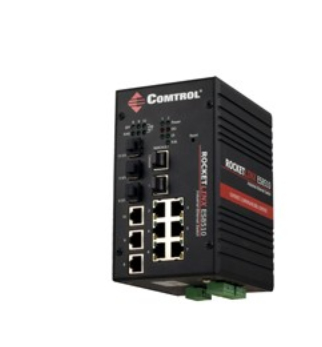

Managed Industrial Ethernet Switch, 7 x Fast Ethernet RJ-45, 3 x Gigabit Ethernet Combo, Extended Operating Temperature Range
The RocketLinx ES8510-XT is a managed Industrial Ethernet switch, equipped with seven 10/100BASE-TX ports and three 10/100/1000BASE-TX RJ45/100BASE-FX/Gigabit SX/LX/LHX/XD/ZX combo ports. Two Gigabit ports may be used to form a nonstop Redundant Ring while the third Gigabit port enables connection to an upper switch, couple ring, or public server. The Gigabit combo port design provides flexibility to choose copper or fiber media supporting 100BASE-FX or 1000BASE-X, Multi-Mode or Single-Mode for a wide variety of distance and installation requirements.
The RocketLinx ES8510-XT is housed in a rugged aluminum enclosure that features an excellent heat dispersing mechanical design and a wide operating temperature support. The embedded software supports full Layer 2 management features, multi-form ring redundancy, network control, monitoring, security and notification. The RocketLinx ES8510-XT also provides a built-in watchdog timer and digital input and relay output to avoid undetected problems. The RocketLinx ES8510-XT provides the perfect foundation for building your industrial Ethernet infrastructure.
Three Gigabit Ports for Flexible Network Planning
A unique feature to the RocketLinx ES8510-XT is the three Gigabit RJ45/SFP combo ports, which can improve performance dramatically compared to products with only two Gigabit RJ45/SFP combos. Each combo comes with a flexible connection -- 100Mbps or 1000Mbps, as well as fiber or copper connection options. All together, as many as ten different combinations of port connections are possible. By selecting the appropriate fiber transceivers, the RocketLinx ES8510-XT can meet your industrial application requirements with virtually any transmission distance.
100/1000Mbps SFP
The RocketLinx ES8510-XT SFP socket supports 100BASE-FX Single/Multi-Mode and 1000BASE-SX/LX/LHX/XD Multi/Single-Mode transceivers. The available distance of the 100BASE-FX is up to 30KM. 1000BASE-SX Multi-Mode supports 550M, 1000BASE-LX Single-Mode supports 10KM, 1000BASE-LHX Single-Mode supports 30KM, 1000BASE-XD Single-Mode supports up to 50KM. 1000BASE-ZX Single-Mode supports up to 70KM.
