Management features
| Multicast support |
Y |
| MIB support |
MIB-II, Bridge MIB, Ethernet-Like MIB, VLAN MIB, SNMP MIB, PoE MIB, RMON, LLDP MIB, Trap MIB, Private MIB |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Switching capacity |
12.8 Gbit/s |
| Number of trunks |
8 |
| Number of VLANs |
64 |
| Throughput |
1.49 Mpps |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| 10G support |
N |
Protocols
| Management protocols |
SNMP v1/v2c/v3, Telnet, SSH, http, https |
| Supported network protocols |
IPV6 |
Design
| Safety |
IEC 60950/EN60950, CSA C22.2 No. 60950/UL60950 |
| Form factor |
1U |
| Rack mounting |
Y |
Ports & interfaces
| Fast Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Combo SFP ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Console port |
RS-232 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Managed Industrial Ethernet Switch, 24 x Fast Ethernet RJ-45, 4 x Gigabit Ethernet Combo, Extended Operating Temperature

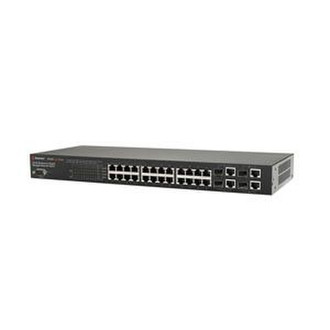

The RocketLinx ES9528-XT is a Layer 2 managed Industrial Ethernet switch, equipped with 24 10/100BASE-TX ports and four Gigabit Ethernet RJ45/SFP combo ports.. The four Gigabit combo port design allows 10/100/1000 triple speed, and the SFP ports accept all types of gigabit SFP transceivers, including SX, LX, LHX, ZX and XD for a variety of connections and distances. It is specially designed for control rooms and applications where high-port density and performance are required.
The ES9528-XT is typicially mounted within a 19-inch rack, along with other 19-inch public servers or other network devices. When lower industrial switches are aggregated to the ES9528-XT, the 24-port plus 4G design allows the connection of up to twelve 100M rings plus two Gigabit rings. Each having its own ring redundancy protection.
The RocketLinx ES9528-XT is a fan-less rackmount switch with low power consumption and supports a wide operating temperature. It supports Jumbo Frame featuring up to 9,216 bytes packet size for large file transmissions. The embedded software supports full Layer 2 management features, multi-form ring redundancy, network control, monitoring, security and notification. The RocketLinx ES9528-XT provides the perfect foundation for building your industrial Ethernet infrastructure.
