Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Internal modem |
N |
| Wi-Fi |
N |
| Bluetooth |
N |
Packaging content
| Display included |
N |
| Drivers included |
Y |
Processor
| Number of processors installed |
1 |
| Processor cache |
0.512 MB |
| Processor cache type |
L2 |
| Processor cores |
1 |
| Processor frequency |
1.2 GHz |
Ports & interfaces
| DVI port |
Y |
| SmartCard slot |
N |
| Serial ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| DC-in jack |
Y |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter family |
AMD Radeon HD 6000 |
| Discrete graphics adapter model |
Not available |
Storage
| Solid-state drive capacity |
60 GB |
| Total storage capacity |
60 GB |
| Card reader integrated |
N |
| Storage media |
SSD |
| Solid-state drive interface |
Serial ATA |
Software
| Operating system architecture |
64-bit |
Memory
| Memory layout (slots x size) |
1 x 4 GB |
| Memory slots |
1x SO-DIMM |
| Maximum internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
4 GB |
Power
| Power supply input voltage |
110 - 240 V |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

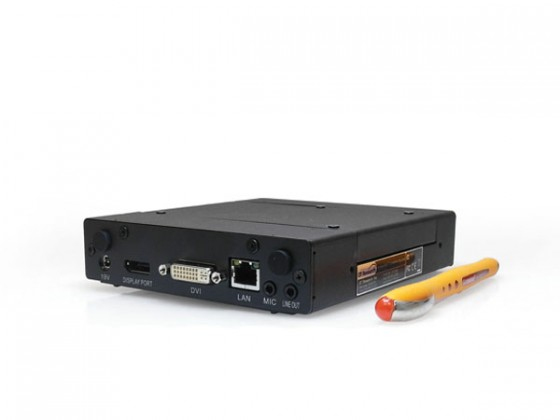

212F Mini-PC, Fanless, AMD T44R (1.2GHz, 0.5MB), 4GB DDR3 RAM, 60GB 2.5" SATA SSD, ATI Radeon HD6250, Display Port, DVI, 4x USB 2.0, 2x COM, SIM-Slot, 2x MiniPCIe, 1250g, Windows 7 Professional 64-bit
fanless, flat Mini-PC 212F Barebone for Digital Signage or other PC tasks. Metal case with only 0.8 liter volume. Completly assembled with 60 GB SSD, 4 GB DDR3 RAM and MS Windows 7 Professional 64-bit OEM incl. drivers.
Internal: AMD G-Series T44R CPU with 1,2 GHz, 512 KB Cache, powerful AMD ATI Radeon HD6250 Video acceleration for two independent displays, SO-DIMM slot for DDR3 RAM, SIM-card slot on board, mount for 2,5" SATA HD or SSD, 1x half size Mini-PCI Express Slot for optional Wifi card, 1x full size Mini-PCI Express Slot for optional 3G GSM card.
Connectors: DVI-I (including DVI and VGA), DisplayPort (can be connceted to HDMI or DVI with adaptor), 1x GB-LAN, 4x USB, 2x serial port, wide voltage-in (10-22V), external EU power adaptor (110-240V/19V).
Options: 3G GSM Kit with SMA antenna jack (No. +3G-MPCIE), Wifi-Kit with SMA antenna jack (No. +WLAN-PCIEn), VESA 100 mount (No. VESA-3), y-cable DVI-I to DVI & VGA (No. KAB-YDVI)
