Memory
| Memory slots type |
SO-DIMM |
| Maximum internal memory |
4 GB |
| Number of memory slots |
1 |
| Supported memory types |
DDR3-SDRAM |
Power
| Number of power supply units |
1 |
| Power supply type |
AC/DC |
Ports & interfaces
| DVI port |
Y |
| DisplayPorts quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| Serial ports quantity |
2 |
Motherboard
| Number of processors supported |
1 |
Networking
| Bluetooth |
N |
| Networking features |
Gigabit Ethernet |
Storage
| Card reader integrated |
N |
| Number of storage drives supported |
1 |
Processor
| L2 cache |
0.5 MB |
| Processor cores |
2 |
Certificates
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Other features
| Number of processors installed |
1 |
Graphics
| Graphics adapter family |
ATI |
Additionally
| Ethernet LAN connection |
Y |
| Graphics |
Radeon HD 6320 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

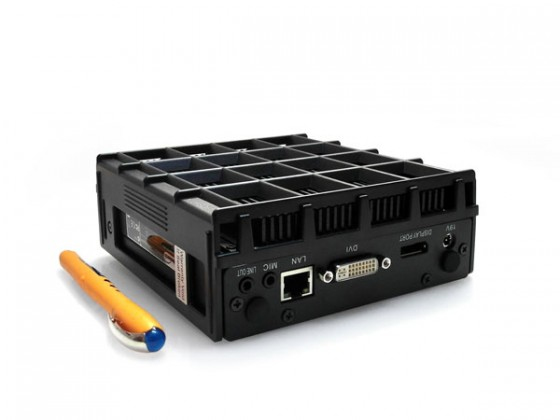

316F, Mini-PC Barebone, Fanless, AMD T56N (2C, 1.6GHz, 512KB), ATI HD 6320, DisplayPort, DVI, 4x USB 2.0, 2x COM, SIM-Slot, 6.35 cm (2.5 ") SATA, 2x MiniPCIe, 1.6kg
fanless, flat Mini-PC 316F Barebone for Digital Signage or other PC tasks. Metal case with only 1.0 liter volume.
Internal: AMD G-Series T56N Double-Core CPU with 2x 1,65 GHz, 512 KB Cache, powerful AMD ATI Radeon HD6320 Video acceleration for two independent displays, SO-DIMM slot for DDR3 RAM, SIM-card slot on board, mount for 2,5" SATA HD or SSD, 1x half size Mini-PCI Express Slot for optional Wifi card, 1x full size Mini-PCI Express Slot for optional 3G GSM card.
Connectors: DVI-I (including DVI and VGA), DisplayPort (can be connceted to HDMI or DVI with adaptor), 1x GB-LAN, 4x USB, 2x serial port, wide voltage-in (10-22V), external EU power adaptor (110-240V/19V).
Options: 3G GSM Kit with SMA antenna jack (No. +3G-MPCIE), Wifi-Kit with SMA antenna jack (No. +WLAN-PCIEn), VESA 100 mount (No. VESA-3), y-cable DVI-I to DVI & VGA (No. KAB-YDVI)
