Ports & interfaces
| Audio connections |
N |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Video port type |
VGA |
| VGA (D-Sub) ports quantity |
3 |
| DC-in jack |
Y |
Video
| Maximum analog resolution |
1920 x 1440 pixels |
System requirements
| Mac operating systems supported |
Y |

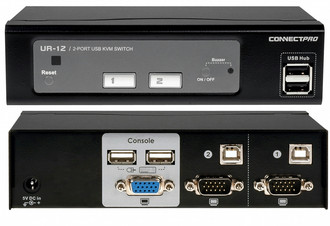

Master-IT USB UR-12 KVM Switch
ConnectPRO's all-new UR-12 is the most reliable, Windows 7 Compatible, desk-top solution for controlling 2 USB computers from a single console. With 4 USB hub ports, a customer can connect more than just a keyboard and mouse to the KVM, allowing for additional USB 2.0 devices to be shared. Switch between the computers with the push of a button.

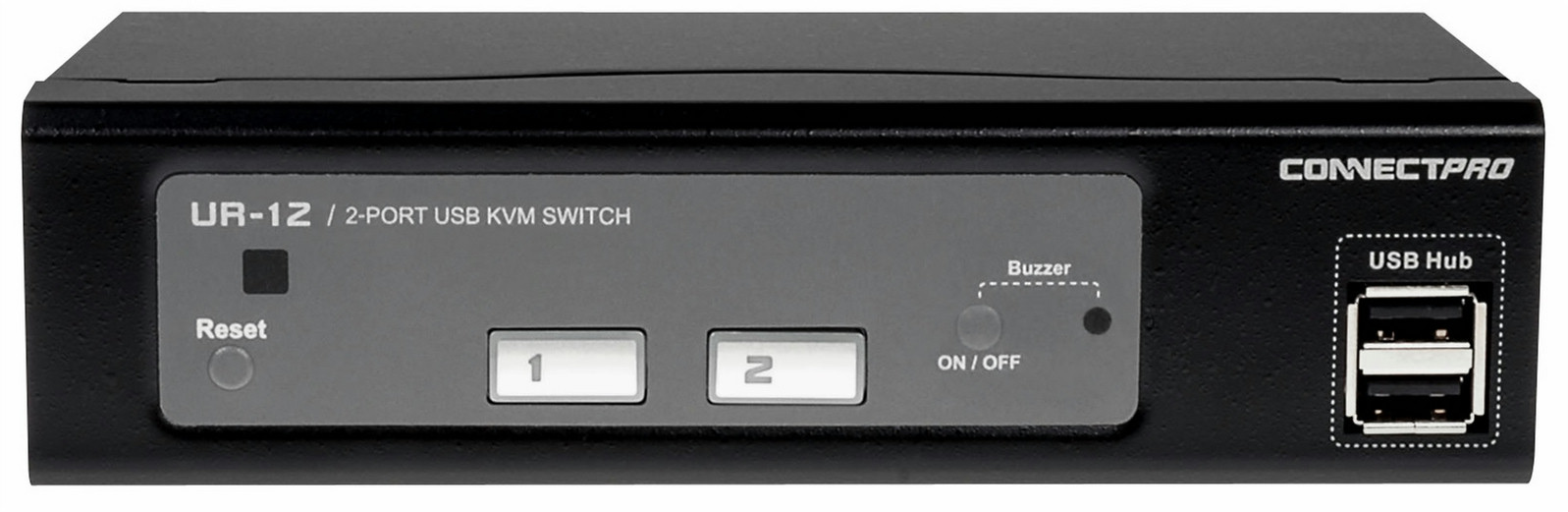

The front panel push-buttons are designed to let the customer know which ports have a powered computer connected, and which port is currently active. A buzzer is built in to give the user an audio confirmation whenever the KVM switches ports, though if the customer chooses they may disable the buzzer sound with the push of a button.
The UR-12 is WINDOWS 7 compatible, and is designed to provide an overall better user experience than that of other KVM switches by providing full-time DDC communication and EDID pass-through on all ports.
