Technical details
| Fan connector |
4-pin |
| Maximum airflow |
86.15 cfm |
| Minimum airflow |
19.17 cfm |
| Number of fans |
1 fan(s) |
| Radiator |
Y |
| Fan |
Y |
| Supported processor sockets |
Socket AM3, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, Socket FM1 |
| Fan speed (max) |
2400 RPM |
| Fan speed (min) |
600 RPM |
| Noise level |
40 dB |
Power
| Pump current |
300 mA |
| Pump voltage |
12 V |
Design
| Radiator material |
Aluminium |
Weight & dimensions
| Radiator width |
154 mm |
| Fan diameter |
120 mm |
| Fan thickness |
25 mm |
| Radiator depth |
119 mm |
| Radiator height |
36.4 mm |
Intel LGA 2011 / 1366 / 1156 / 1155 / 1150 / 775, AMD Socket FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2, Fan Speed: 600 - 2400RPM, Fan Air Flow: 19.17 - 86.15CFM, Fan Air Pressure: 0.31 - 4.16mm H2O, 12V DC, Fan / Pump Noise: 19 - 40dB / 23dB, Rifle bearing, 4-Pin Fan Connector, 3-Pin Pump Connector

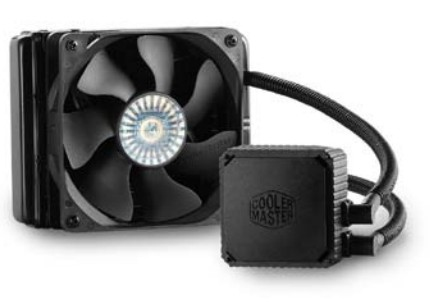

The Seidon 120V is Cooler Master’s new water cooling kit that with the best C/P ratio. The compact 120mm radiator virtually fits every case. Thanks to a 120mm PWM fan with a wide RPM range Seidon can operate silently or unleash a powerful cooling storm at your
command. The durable FEP Tubing provides the advantages of nearly no moisture absorption, high thermal stability and high pressure tolerance.
- Factory filled with coolant, then sealed and pressure tested - requires zero maintenance for years.
- The best optimization pump and water block guarantees the best water flow and
- system performance.
- Special designed 120mm radiator provides superior heat dissipation performance and fits in any case internally and externally.
- 120mm PWM fan with a wide RPM range to fine tune and balance fan noise and
- performance.
- Blue LED indicator lights up when operating.
