Data transmission
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
Other features
| Networking features |
Gigabit Ethernet |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |
8 ports x 10/100/1000Mbps, IEEE802.3x
8-Port Gigabit Switch
- Compact 8-port Gigabit Network Switch
- Modern and stylish design
- Great for large file transfers
- Suited for gaming, multimedia streaming, VoIP, home surveillance feeds, etc.
Product Overview

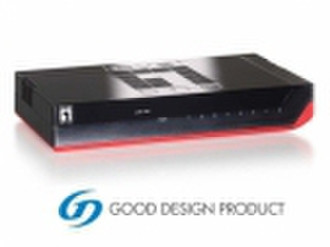

The LevelOne GSW-0807 is a high-performance 10/100/1000Mbps Gigabit Ethernet switch with 8 Gigabit Ethernet ports. It provides for flexible network architecture where users can utilize a Gigabit LAN network without bandwidth limitations.
Gigabit LAN Connectivity
The GSW-0807 is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. It is 1000BASE-T compliant and supports full- and half duplex auto-detection modes. It further supports MDI/MDI-X auto crossover and IEEE802.3x flow control.
Optimized Network Performance
The switch makes use of Store-and-Forward switching for faultless data packet transmissions. It provides 9K bytes jumbo frames for enhances network performance. The GSW-0807 Gigabit Switch is plug-n-play and doesn’t require any software installation or configuration.
Compact Size
The GSW-0807 is hosted in a compact and fan-less metal enclosure for easy use o a desktop or in space limited environments.
