Video
| Playback resolutions supported |
704×480 NTSC / 704×576 PAL\n704x240 NTSC / 704×288 PAL\n352×240 NTSC / 352×288 PAL |
| Analog signal format system |
NTSC, PAL |
| Video compression formats |
H.264 |
| Digital zoom |
2 x |
Networking
| Ethernet interface type |
Fast Ethernet |
| Supported network protocols |
TCP/IP, PPPOE, DHCP, DDNS |
Packaging content
| Handheld remote control |
Y |
Hard drive
| Number of hard drives supported |
2 |
| Maximum hard drive capacity |
2 GB |
| Hard drive interface |
Serial ATA |
Ports & interfaces
| BNC input ports |
16 |
| BNC output ports |
16 |
| VGA (D-Sub) output ports |
1 |
Technical details
| Motion sensor |
Y |
| Channels quantity |
16 channels |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

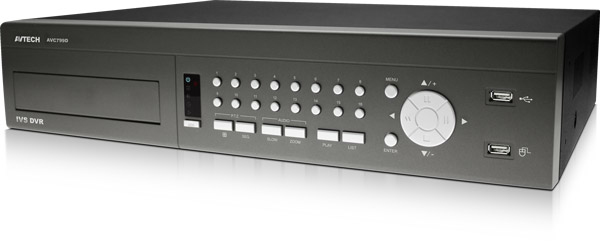

16CH IVS Network DVR, NTSC / PAL, H.264, 2 x SATA, USB, 10/100 Base-T, Black
Mobile Surveillance with EagleEyes
- Compatible with many popular mobile platforms, such as iPhone, BlackBerry, Windows Mobile, Symbian & Android.
Remote Surveillance with Browsers and CMS
- For web browsers, compatible with Internet Explorer, Mozilla Firefox, Google Chrome, Apple Safari & Opera.
- For CMS software, available with our self-developed and free software, "Video Viewer.
- Applicable also to Apple's media player, QuickTime.
iPhone Push Notification (worked with AVM602V)
- Supports sending Push Notification to your iPhone for instant event notification when a man is detected (human detection).
Intelligent Surveillance
- Virtual Fence
- A virtual intruder detection line is set to detect intruders crossing the detection line.
- Flow Counting
- A virtual detection line is set to detect the moving direction of pedestrians for flow counting.
- Single Channel Motion Recording
- Only the channel with an event will be recorded to effectively save a significant amount of hard disk space and have the maximized recording time.
- Supports pre-alarm recording.
USB Mouse Control with GUI OSD
- The GUI OSD interface is provided and used with your USB mouse.
DVR / Camera Communication System (DCCS)
- For PTZ or zoom-lens control cameras, there's no need to additionally connect RS485 control wires for camera control because the control signals can be transferred by coaxial cables directly.
- Camera installation is highly simplified to lower labor cost and working hours.
Basic Remote Independent Operation
- Channel switching is independent from the local site, allowing users to have private image monitoring remotely.
High Performance Design
- Definable "Resolution" / "Quality" / "IPS" by channels at your preferences to increase the recording efficiency, and avoid any important scenes to be missed.
Video Output
- Supports video output for both composite & VGA simultaneously.
- Support VGA resolution output up to 1600 x 1200.
- Multiplex
- Allows live display, record, playback, backup and network operation at the same time.
- Backup Function
- Supports USB flash drive and network backup.
