Performance
| Frequency band |
0.698 - 0.96 / 1.71 - 2.17 / 2.3 - 2.7 GHz |
Features
| Antenna connector type |
SMA |

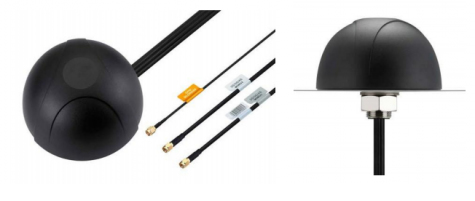

3-in-1 GPS/GLONASS & 3G/4G/LTE Screw-mount Antenna w/ 3M Cables
The 3-in-1 GPS-GLONASS and two cellular (3G/4G/LTE) bolt-mount antenna with 3M Cables is
an omnidirectional heavy-duty, fully IP67 waterproof external M2M antenna for use in
telematics, transportation and remote monitoring applications. It includes two LTE MIMO
antennas and one GPS/GLONASS antenna, in the highest efficiency and peak gain possible.
This antenna particularly finds its application in mobile video, vehicle communications,
location and fleet management, safety & security, remote industrial equipment monitoring.
The antenna consists of two LTE MIMO elements 698-960MHz, 1710-2170MHz, 2300~2700MHz,
2900-3500MHz. The antennas are designed to work equally well on LTE to deliver maximum
dataspeed rates, or on legacy 2G and 3G frequencies where LTE is not available.
The GNSS antenna is a wide-band GPS/ GLONASS element tuned to have optimum gain at
1575.42 MHz GPS and 1602MHz Glonass frequencies.
Mechanically, the unit has three high efficiency and gain antennas packed in an extremely
robust IP67 direct mount antenna package with excellent isolation (20dB+). The strengthened
domed housing is designed to deflect tree branches and wires that tend to catch and break
shark fin or rigid whip antennas.
The antenna has its own internal ground-plane and can radiate on any mounting environment
such as metal or plastic without affecting performance. The internal components are
individually screwed down onto a robust plate, preventing damage from regular vehicle
vibrations.
A completely waterproof mounting seal prevents water from leaking under the housing.
