Ports & interfaces
| DVI port |
N |
| Line-in |
Y |
| Line-out |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| S/PDIF out port |
N |
| Microphone in |
Y |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
49490 |
| Processor code |
SLBXC |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
Graphics
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter memory |
0.25 GB |
Processor
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| ECC supported by processor |
N |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
176 M |
| Processor codename |
Pineview |
| Stepping |
B0 |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
Memory
| Memory clock speed |
1333 MHz |
| Memory slots |
1 |
| Maximum internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
Storage
| Number of storage drives installed |
1 |
| Compatible memory cards |
MMC, MS PRO, SD |
| Card reader integrated |
Y |
| Storage media |
HDD |
Packaging content
| Drivers included |
Y |
| Keyboard supplied |
Y |
| Handheld remote control |
N |
| Full HD |
N |
| Mouse included |
N |
Performance
| Trusted Platform Module (TPM) |
N |
| Audio system |
HD |
Other features
| Built-in microphone |
N |
| Pointing device |
1 |
| Audio system full duplex |
Y |
| Dolby technologies |
Dolby Digital 5.1 Surround Sound |
| Graphics adapter memory type |
GDDR3 |
| Keyboard function keys |
9 |
| Built-in subwoofer |
N |
| BIOS password |
Y |
| Audio system direct sound |
Y |
| TV tuner integrated |
N |
| Built-in camera |
N |
Optical drive
| Optical drive type |
DVD±RW |
| LightScribe |
N |
Networking
| Wi-Fi |
Y |
| Bluetooth |
N |
| Ethernet LAN data rates |
1000 Mbit/s |
Certificates
| Energy Star certified |
N |
| Blue Angel certified |
N |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel NM10 Express |
| Intel AES New Instructions |
N |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Processing die size |
87 mm² |
| Ethernet LAN connection |
Y |

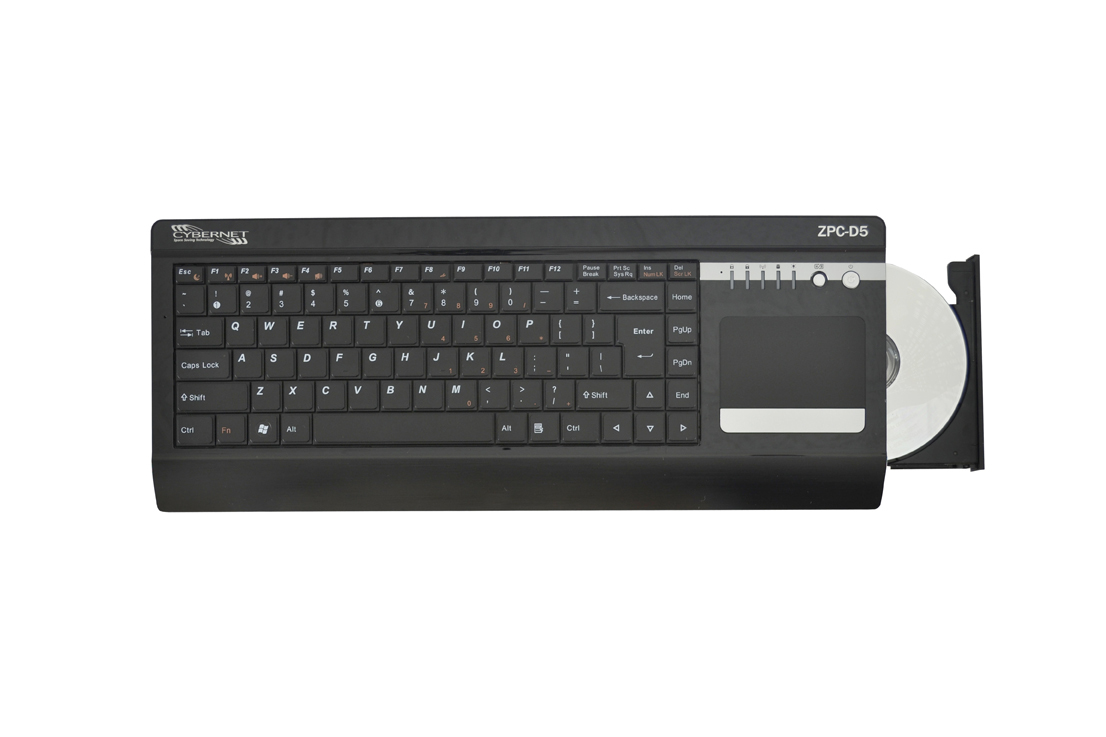

ZPC-D5 - PC Keyboard
Ports Galore
All the connections you need are built right in: Internet, audio, dual monitors, 3-way memory card reader, and 4 USB ports
Slimmer Than a PC Keyboard
This is one of the thinnest keyboard PCs on the planet - just 1" thick. Save even more space on your desktop.
Multi-touch Pad and
Optical Drive
The ZPC-D5 includes an integrated multi-touch trackpad with left and right keys, and a DVD/CD drive.
Processing Power
The latest Intel Dual Core D525 Processor yields outstanding performance and supports up to 4GB of memory.
