Performance
| Surge protection |
Y |
| Audible alarm(s) |
Y |
| UPS topology |
Standby (Offline) |
| EMI/RFI noise filtering |
Y |
| Surge protection features |
Coax, Network, Telephone |
Battery
| Battery type |
12V/7AH |
| Number of battery cells |
1 |
| Battery recharge time |
8 h |
| Typical backup time at half load |
10 min |
| Typical backup time at full load |
3 min |
Power
| Input operation voltage (max) |
140 V |
| Input operation voltage (min) |
96 V |
| Power supply input frequency |
47/63 Hz |
| Surge energy rating |
890 J |
| Output power capacity |
750 VA |
| Output power |
420 W |
Ports & interfaces
| Power plug |
NEMA 5-15P |
| AC outlets quantity |
8 AC outlet(s) |
Other features
| Nominal output voltage |
120 V |
750VA, 420W, 8 x NEMA 5-15R Out, 1 x RJ-11 In, 2 x RJ-11 Out, 1 x USB, EMI/RFI Filters

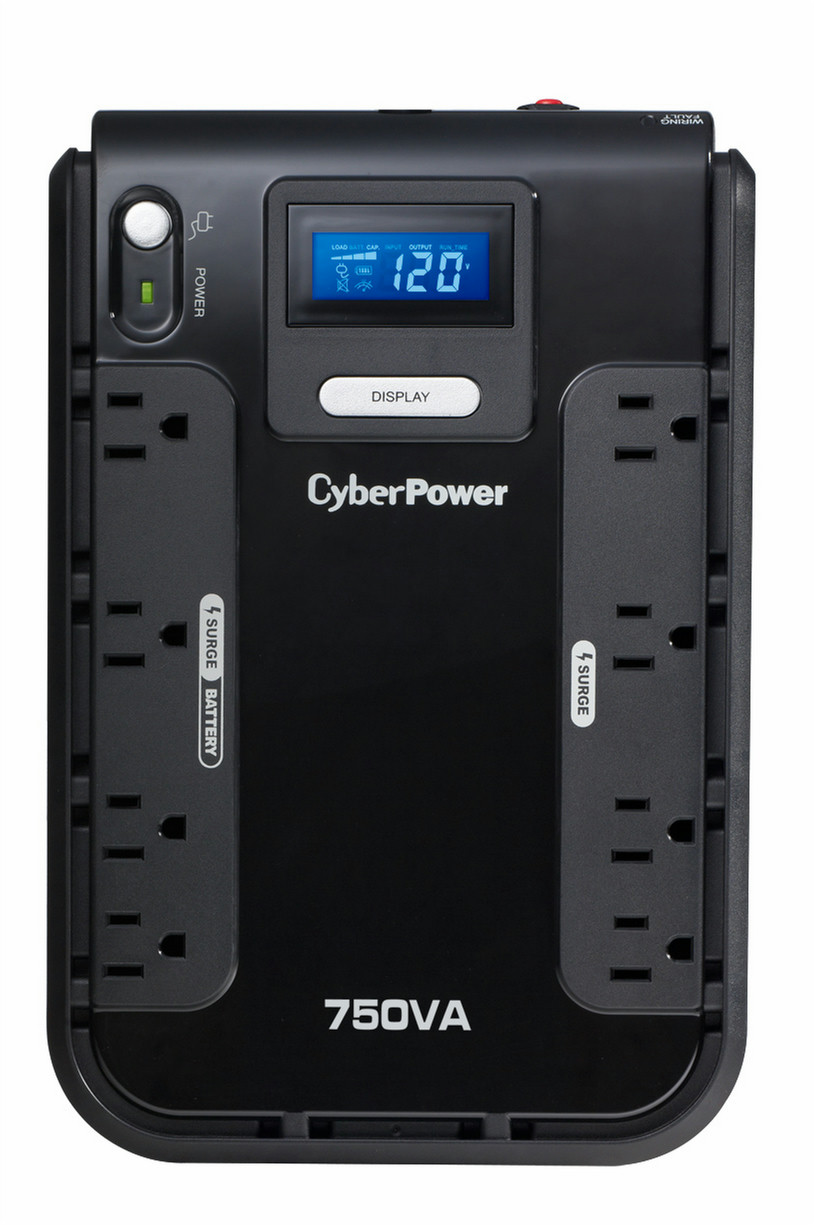

The CyberPower Standby CP750LCD uninterruptible power supply (UPS) safeguards PCs and other electronics (monitors, cable DSL/ modems, VoIP routers, fax machines, and home theater equipment) from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its composite integrated circuitry offers advanced lightning protection. Patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models. The multifunction diagnostic LCD provides users the ability to check UPS operating status and assist in trouble-shooting power anomalies.
The CP750LCD unit has a capacity of 750VA/420Watts, eight (8) NEMA 5-15R receptacles, including four (4) widely-spaced outlets to accommodate transformer-based plugs. Its compact design allows for horizontal or vertical placement, or it can be mounted on a wall. This UPS has a maintenance-free 12V/7.0Ah battery and is user replaceable. Protection for phone/network (RJ11) is also included. EMI/RFI filters increase the immunity of the load to disturbances and surges.
A HID compliant USB port provides connectivity to the CP750LCD. PowerPanel Personal Edition UPS Management software is included to monitor the vitals of the UPS and will safely shutdown the system in case of a power outage. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $150,000 Connected Equipment Guarantee.
