Ports & interfaces
| Serial ports quantity |
1 |
| Output connections |
20 x C13 & 4 x C19 |
| Power plug |
NEMA L6-20P |
Management features
| Management platform |
SNMP, HTTP |
Operational conditions
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 4500 m |
Power
| Maximum input current per phase |
20 A |
| Maximum current |
20 A |
| Input frequency |
50/60 Hz |
| Nominal output voltage |
200-240 V |
| Power protection features |
Overload |
| Nominal input voltage |
200-240 V |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
20 x C13 & 4 x C19 Outlets, 200V - 240V, RJ45, DB9, SNMP, LCD, 0U

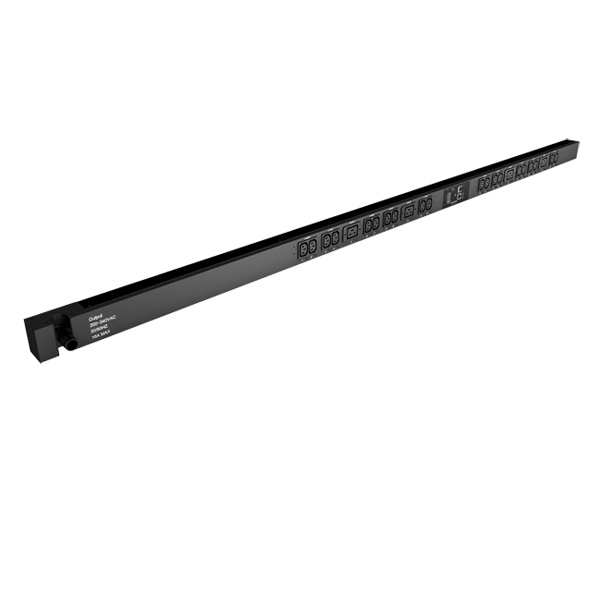

The CyberPower (PDU20MVHVT24FNET) 24-outlet 1U rack mount monitored power distribution unit (PDU) provides 200-240V 20A output. It distributes power to 24 IEC-320 (20-C13 and 4-C19) receptacles from a single NEMA L6-20 plug, with unfiltered electrical pass-through. Power status can be monitored over the network, using CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally using the LCD.
The front LCD panel provides local monitoring of the PDU. Load management is accomplished by using the display to measure the electrical current used by connected equipment in amps. The LCD can also display input voltages to assist in diagnosing potential issues with input power. Power being consumed in watts can also be displayed, as well as, the IP address of the network interface for ease of installation.
The CyberPower Management Console offers real-time remote monitoring of PDU vitals of the outlets on networked clients. Event Logging via a web browser/network connection to review history on power conditions, such as input voltages, load levels, and outlet status. Automatic event notifications via Email or SNMP Trap are sent to designated user when specified power events occur.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. A RJ-45 port enables the connection of the optional ENVIROSENSOR environmental sensor for monitoring the heat and humidity in an IT center. It can be mounted either horizontally or vertically, includes a cord retention tray and is UL60950_1 and FCC Class A certified. A three-year warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
