Ports & interfaces
| Serial ports quantity |
1 |
| Power plug |
NEMA 5-15P |
| AC outlets quantity |
8 AC outlet(s) |
Other features
| Management platform |
SNMP/HTTP |
| Overload protection |
Y |
| Nominal output voltage |
120 V |
Battery
| Battery type |
12V/12AH |
| Number of battery cells |
2 |
| Hot-swap battery |
Y |
| Battery recharge time |
8 h |
| Typical backup time at half load |
24.5 min |
| Typical backup time at full load |
7 min |
| Replacement battery cartridge |
RB12120X2A |
| Battery replacement alarms |
LED |
Power
| Input operation voltage (max) |
154 V |
| Input operation voltage (min) |
75 V |
| Power supply input frequency |
47/63 Hz |
| Surge energy rating |
1030 J |
| Output power capacity |
1000 VA |
| Output power |
700 W |
Performance
| Audible alarm(s) |
Y |
| EMI/RFI noise filtering |
Y |
| Power protection features |
Overload |
1000VA, 700W, 6 x NEMA 5-15R Out, 1 x USB, 1 x DB-9, 1 x EPO, EMI/RFI Filters, Mini-Tower
Smart App UPS | Network and Servers

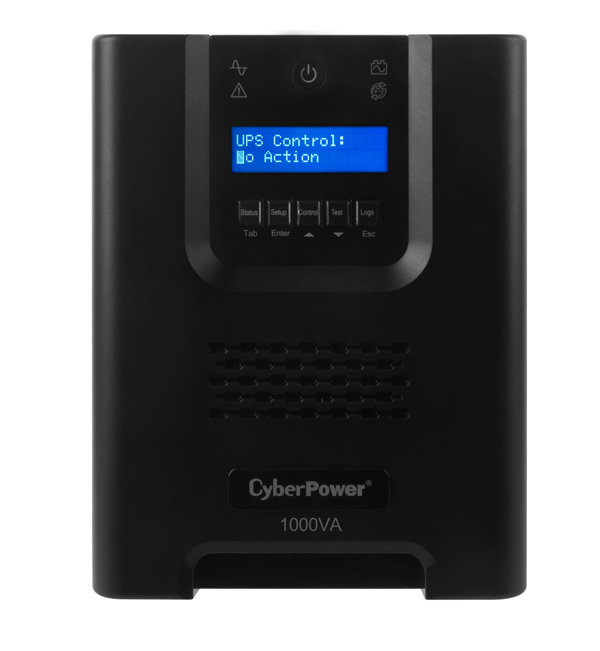

The CyberPower Smart App Sinewave PR1000LCD mini-tower uninterruptible power supply (UPS) with LCD Control Panel and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.
The LCD control panel provides 41 different settings to check status and customize the operating settings for the PR1000LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5 FT away from the UPS for ease of viewing when installed in hard to reach locations.
The PR1000LCD unit has a capacity of 1000VA/700Watts, six (6) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/12.0Ah batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR1000LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $375,000 Connected Equipment Guarantee.
