Battery
| Battery capacity |
9 Ah |
| Hot-swap battery |
Y |
| Battery recharge time |
6 h |
| Battery voltage |
12 V |
| Typical backup time at half load |
5 min |
| Typical backup time at full load |
2 min |
| Replacement battery cartridge |
RB1290X4F |
| Number of batteries supported |
4 |
Performance
| Waveform |
Sine |
| Noise level |
35 dB |
| Surge protection |
Y |
| Audible alarm(s) |
Y |
| UPS topology |
Line-Interactive |
| EMI/RFI noise filtering |
Y |
| Power protection features |
Short circuit |
| Surge protection features |
Telephone |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
Power
| Input operation voltage (max) |
131 V |
| Input operation voltage (min) |
109 V |
| Power supply input frequency |
47/63 Hz |
| Surge energy rating |
2060 J |
| Output power capacity |
3000 VA |
| Output operation voltage (max) |
120 V |
| Output power |
3000 W |
Packaging content
| Rack mount kit |
Y |
| Software CD |
Y |
| Warranty card |
Y |
Ports & interfaces
| Serial interface |
Y |
| USB port |
Y |
| Power plug |
NEMA L5-30P |
| AC outlets quantity |
9 AC outlet(s) |
| Emergency Power Off (EPO) connector |
Y |
Certificates
| Safety |
UL1778, CSA C22.2 NO.107.3-05, FCC DOC Class A |
| Energy Star certified |
Y |
Design
| Form factor |
Rackmount/Tower |
Operational conditions
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |

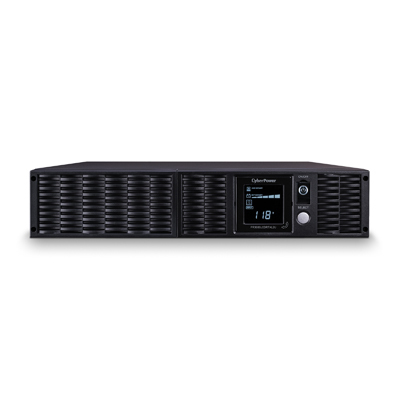

Smart App Sinewave UPS Series, 3000VA, 3000W, 2060J, 9 outlets, 35dB, black
A rack/tower convertible UPS with line interactive topology and a pre-installed SNMP card, the CyberPower Smart App Sinewave PR3000LCDRTXL2UN provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR3000LCDRTXL2UN uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The RMCARD205, a remote management card that provides remote management and configuration of the UPS via a standard Web browser or network management system (NMS) comes installed. The PR3000LCDRTXL2UN comes with a three-year warranty and a $400,000 Connected Equipment Guarantee.
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Sine Wave Output
Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
GreenPower UPS Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Rotatable Multifunction LCD Panel
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.
Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.
PowerPanel Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
Cisco Compatible
This CyberPower UPS system is a Cisco EnergyWise compliant end device.
ENERGY STAR
This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
