Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
N |
Packaging content
| Display included |
N |
| Mouse included |
Y |
| Keyboard supplied |
Y |
Processor
| Number of processors installed |
2 |
| Processor boost frequency |
2.5 GHz |
| Number of QPI links |
2 |
| Processor cache |
15 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
95 W |
| Maximum number of PCI Express lanes |
40 |
| Memory clock speeds supported by processor |
800, 1066, 1333 MHz |
| Memory channels supported by processor |
Quad |
| Conflict Free processor |
N |
| FSB Parity |
N |
| Processor socket |
LGA 2011 (Socket R) |
| Stepping |
C2 |
| Processor cores |
6 |
| Processor frequency |
2 GHz |
| Tcase |
77.4 °C |
| ECC supported by processor |
Y |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
| Memory bandwidth supported by processor (max) |
42.6 GB/s |
| Maximum internal memory supported by processor |
750 GB |
| Processor cache type |
Smart Cache |
| PCI Express slots version |
3.0 |
| CPU multiplier (bus/core ratio) |
25 |
| Processor operating modes |
64-bit |
Ports & interfaces
| DVI port |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
2 |
Processor special features
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
32 nm |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Smart Connect Technology |
N |
| Physical Address Extension (PAE) |
46 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
52.5 mm |
| Processor ARK ID |
64594 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
2 |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel® Secure Key |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
0.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel TSX-NI version |
0.00 |
| Intel Demand Based Switching |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
AVX |
| Embedded options available |
Y |
| Scalability |
2S |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
Y |
Storage
| Solid-state drive capacity |
120 GB |
| Number of SSDs installed |
1 |
| Hard drive capacity |
1000 GB |
| Hard drive speed |
7200 RPM |
| Total storage capacity |
2120 GB |
| RAID support |
Y |
| Number of hard drives installed |
2 |
| Hard drive interface |
Serial ATA II |
| Solid-state drive interface |
Serial ATA II |
Software
| Operating system architecture |
64-bit |
Expansion slots
| PCI Express x8 (Gen 3.x) slots |
3 |
| PCI Express x16 (Gen 2.x) slots |
3 |
Memory
| ECC |
Y |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
4 x 8 GB |
| Memory slots |
16x DIMM |
| Maximum internal memory |
512 GB |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
32 GB |
Graphics
| Number of discrete graphics adapters |
1 |
| Discrete graphics adapter memory |
2048 GB |
| Discrete graphics memory type |
GDDR5 |
| Discrete graphics adapter model |
NVIDIA Quadro 4000 |
Optical drive
| Optical drives quantity |
1 |
| Optical drive type |
DVD Super Multi DL |
Additionally
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
3 |
| System bus data transfer rate |
7.2 GT/s |
Intel Xeon E5-2620 (15M Cache, 2.00 GHz, 7.20 GT/s Intel QPI), 32GB DDR3 1333MHz, 2TB HDD + 120GB SSD, NVIDIA Quadro 400 2GB, DVD SuperMulti DL, Gigabit Ethernet, Windows 7 Professional 64-bit

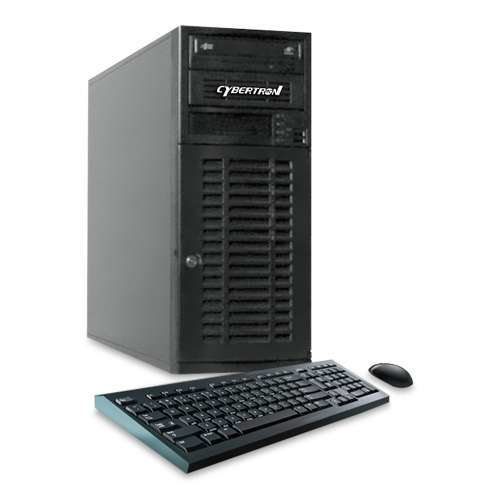

Experience speed and excellence in your daily computing when you purchase the CybertronPC Blueprint TCAD1112A Workstation PC. This amazing workstation PC is equipped with 2x Intel Xeon E5-2620 2.0GHz processors to provide your system with superior processing power capable of handling both your productivity and entertainment needs effectively. It comes with 32GB of DDR3 memory for an extremely fast and unbelievably smooth workflow that can accommodate even the most demanding multitasking sessions. The CybertronPC Blueprint TCAD1112A Workstation PC offers two 1TB hard disk drives and a 120GB solid state drive so you can be assured that you'll never run out of space for your files, documents, applications, and just about anything else. Plus, it has a DVD±RW Dual Layer optical drive so you can burn or play data on several disk formats. Get the CybertronPC Blueprint TCAD1112A Workstation PC right now!
