Ports & interfaces
| Remote (IR) output |
1 |
| Serial ports quantity |
1 |
| Remote (IR) input |
1 |
| RJ-45 input ports |
1 |
| Number of HDMI outputs |
1 |
| RS-232 output ports |
1 |
| Serial interface type |
RS-232 |
| USB connector type |
USB Type-A |
| USB ports quantity |
2 |
Technical details
| Bandwidth |
10.2 Gbit/s |
| Baud rate |
115.2 Kbit/s |
| Electrostatic Discharge (ESD) protection |
8 kV |
| Remote control type |
IR, RS232 |
| HDCP |
Y |
| Cable types supported |
Cat6a, Cat7 |
| Maximum transfer distance |
100 m |
| Type |
AV receiver |
Power
| External power adapter |
Y |
| Operating voltage |
48 V |
Additionally
| Wireless connections |
N |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |

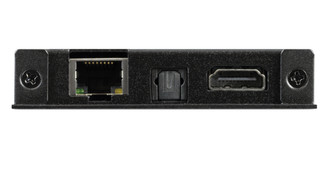

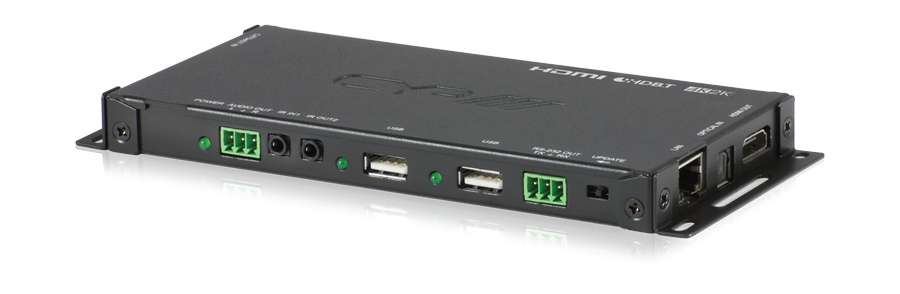

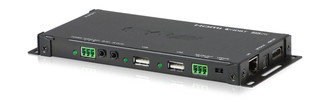

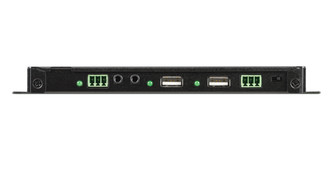

100m HDBaseT 2.0 Slimline Receiver, 4K, HDCP2.2, PoH, LAN, OAR, USB
The PU-2010RX Slimline Receiver supports video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN, and USB data signals up to 100m. Utilising the latest HDBaseT 2.0 technology, this solution provides advanced signal management and dedicated audio pathways to ensure reliable results in the most demanding installation environments. In addition to the full 5-Play convergence, this device also incorporates OAR (Optical Audio Return) and ARC (Audio Return Channel) functions which enable audio from a compatible display to be routed back from the receiver unit to the transmitter. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.
This system also allows the connection of any USB host, enabling a USB connection to 2 USB ports, giving the PU-2010RX Receiver the ability to act like a USB hub.
All of these features are encorporated into an ultra slim casing (less than 18mm thick), providing unrivalled flexibility and ease of installation.
