Performance
| Impedance |
50 Ω |
| Vertical beam width |
15 ° |
| Horizontal beam width |
15 ° |
| Antenna gain level (max) |
18 dBi |
| Frequency band |
2.4 GHz |
Features
| Polarization |
Vertical polarization |
| Power handling |
50 W |
| Voltage Standing Wave Ratio (VSWR) |
1.5 |
| Antenna connector type |
N-type |
Other features
| Network architecture |
WLAN |

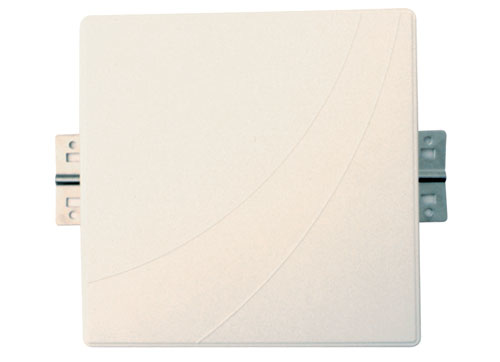

ANT24-1800 - WLAN, 18 dBi, 2.4 GHz
The D-Link ANT24-1800 connects to the DWL-900AP, DI-714 and DI-713P to extend the range of coverage for the wireless network. The D-Link ANT24-1800 antenna provides extended coverage for an existing 802.11b wireless local area network (WLAN). The D-Link ANT24-1800 comes with a conversion cable that allows connection directly to the D-Link DWL-900AP access point, DI-714 wireless broadband router and newer versions of the DI-713P wireless broadband router. The D-Link ANT24-1800 requires an access point or wireless broadband gateway with a reverse SMA connector.This product includes the following items: Mounting Kit, Lightning Surge Protector, Conversion Cable.
