Performance
| Antenna gain level (max) |
14 dBi |
| Vertical beam width (2.4 GHz) |
41 ° |
| Horizontal beam width (5 GHz) |
22 ° |
| Vertical beam width (5 GHz) |
31 ° |
| Antenna gain (2.4 GHz) |
11 dBi |
| Antenna gain (5 GHz) |
14 dBi |
| Horizontal beam width (2.4 GHz) |
44 ° |
| Frequency band |
2.4/5 GHz |
| Impedance |
50 Ω |
Features
| Voltage Standing Wave Ratio (VSWR) |
2.0:1 |
| Antenna connector type |
N-type |
| Polarization |
Vertical polarization |
| Antenna type |
Directional antenna |
| Power handling |
10 W |
Other features
| Frequency range |
2.4 - 2.5GHz, 5.150 - 5.875GHz |
Triple Polarization Dual-Band Outdoor Directional Antenna, 2400 - 2500MHz, 5150 - 5875MHz, VSWR: 2.0:1; 11dBi (2.4GHz), 12-14dBi (5GHz), white
- High gain MIMO antenna ideal for use with D-Link’s Wireless N Access Points.
- Dualband support: 2.4 - 2.5GHz and 5.1 - 5.875GHz ranges.
- Durable design for outdoor use.
- Ideal For Point-to-Point connectivity .
- Waterproof and dustproof (IP67 standard).
- Includes extension cable (RP-SMA to N connector), mounting kit and waterproof tape.

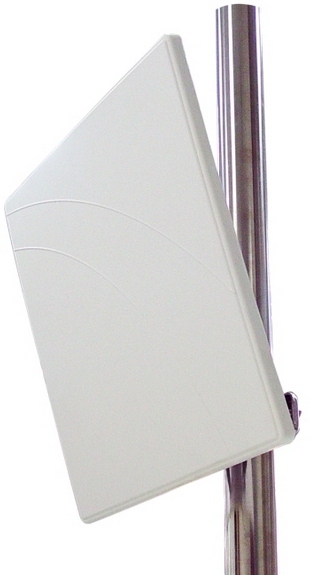

The ANT70-1400N AirPremier N Dualband Outdoor Directional Antenna is an outdoor antenna ideal for connecting LANs wirelessly over long distances using one of the two Wi-Fi 802.11n frequencies, 2.4 or 5GHz. It has three antenna connectors for transmitting three spatial streams.
Point-to-Point application
The ANT70-1400N is ideal for AP operating in modes that require a high gain directional antenna, such as point-to-point Wireless Distribution System (WDS). An example application of this antenna is to connect LANs at two physically separated locations. Alternatively, Wireless Internet Service Provider (WISP) subscribers can also use this antenna to establish a strong connection to their ISP.
Weatherproof design
The ANT70-1400N features a durable build and a waterproof design which provides complete protection from extreme weather. Furthermore, it is made of corrosion-resistant material, enabling it to withstand harsh outdoor conditions and wind speeds of up to 216km/h and is robust enough to remain outside indefinitely. The ANT70-SP surge protector can be purchased seperately to protect the antenna’s receiver from damaging voltages and other outdoor elements such as lightning.
Flexible deployment
For ready installation, the ANT70-1400N antenna includes a pole mounting kit. It also comes equipped with an indoor adapter cable fitted with N-type and RP-SMA connectors for easy connection to a host.
