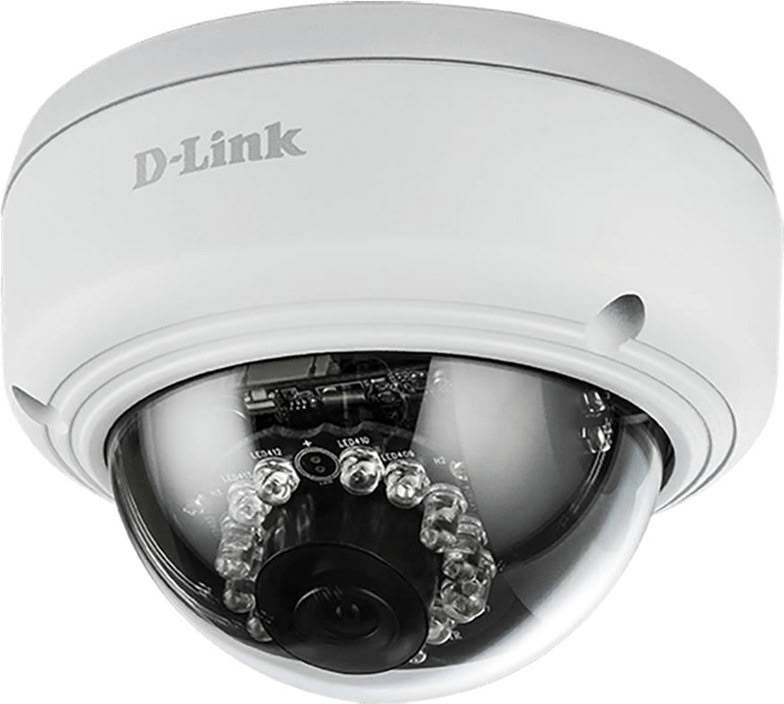

D-Link DCS-4603

Camera types: IP camera, dome camera, infrared camera

Equipment
Functions: with notification function, NAS-capable, Multi User System, IR-Cut Filter, privacy zones, ONVIF, panning/tilting function
Video function: with night vision function
Notification type: Email
Sensor: PIR sensor
Power supply: PoE (Power over Ethernet)

Housing
Housing color: white
Mounting types: Surface mounting, ceiling mounting, wall mounting
Protection class: IP20
Application area: inside
Swivel range: 60 °
Tilt range: 350 °
Temperature range: -30 to 50 °C
Dimensions (W x H x D): 110 x 110 x 78 mm

Network
Interface: RJ45
LAN standard: Ethernet 10/100 Base-TX (802.3u)

Objective
Objective focal length: 2,8 mm
Objective properties: fixed focal length
Light sensitivity IR: 0 Lux
Light sensitivity without IR: 0,5 Lux

Video & Image
IR range: 10 m
Resolution: 2.048 x 1.536 Pixel
Images per sec.: 30
horizontal viewing angle: 96 °
vertical field of view: 54 °
Sensor type: 1/3" CMOS
Digital zoom: 10 times
Pixel sensor: 3 Megapixel
Image enhancements: digital noise reduction (3D-DNR), Wide Dynamic Range (WDR)
Video formats: H.264, MJPEG
Video recordings: Color, Black and White, QXGA, Full HD

Further properties
Operating voltage: 12 V
suitable for: Darkness
additional image resolution: 1920 x 1080 Pixel
