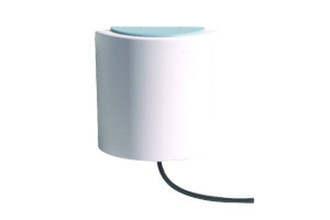

D-Link Directional Indoor/Outdoor Patch Antenna 8.5dBi network antenna

D-Link Directional Indoor/Outdoor Patch Antenna 8.5dBi network antenna

MPN: ANT24-0801
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Vertical beam width 65 °
Horizontal beam width 70 °
Antenna gain level (max) 8.5 dBi
Impedance 50 Ω

Features

Voltage Standing Wave Ratio (VSWR) 1.5:1
Polarization Vertical polarization
Directional Indoor/Outdoor Patch Antenna D-Link®, an industry leader in networking, introduces the ANT24-0801 8.5 dBi Directional Wireless Antenna designed to provide extended coverage for an existing 802.11b/g wireless network. The directional design of the ANT24-0801 offers dramatically increased wireless signal coverage in a specific direction allowing for improved data throughput at further distances.

The D-Link ANT24-0801 8.5dBi Directional Wireless Antenna connects to a variety of wireless PCI adapters, wireless routers, and access points on the market today. Whether the wireless router or access point has a SMA or TNC connector, the ANT24-0801 comes with a RP-SMA to RP-TNC conversion adapter to accommodate either connector type.

The D-Link ANT24-0801 includes a swivel mount that allows pivotal adjustment for precise positioning for the most concentrated signal strength. The D-Link ANT24-0801 also includes a lightning surge protector, and a 3m (9.8 feet) extension cable. The ANT24-0801 is weatherproof and made of corrosion-resistant material to withstand harsh outdoor conditions and wind speeds up to 124 miles/hr (200km/hr).

Avoid the cost and complexity of adding additional wireless access points or wireless repeaters when you can easily use the ANT24-0801 indoors or outdoors. Enjoy the benefits of wireless connectivity at greater distances and speeds throughout your indoor or outdoor wireless coverage area.
