Other features
| Dimensions (WxDxH) |
104 x 62 x 28 mm |
| I/O ports |
Ports:\n1x USB\n1x VGA\n1x PS/2 Keyboard\n1x PS/2 Mouse\nConnectors:\n2x USB\n2x VGA\n2x PS/2 Mouse\n2x PS/2 Keyboard |
Weight & dimensions
| Depth |
62 mm |
| Width |
104 mm |
| Weight |
420 g |
| Height |
28 mm |
Operational conditions
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
Additionally
| Wireless technologies |
Wired |
| Operating temperature range (T-T) |
0 - 40 °C |

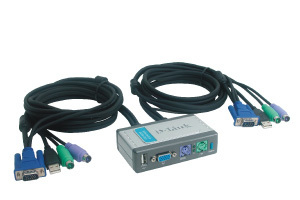

DKVM-2KU, Mini KVM Switch Kit With USB Port For 2PCs
The DKVM-2KU 2-port mini KVM (Keyboard, Video and Mouse) switch kit is a cost effective kit for home and office users. This double function kit allows you to easily control 2 different PCs from a single set of keyboard, mouse, and VGA monitor, and to share a USB device with 2 PCs. It includes a 2-port KVM switch, a USB 2.0 port built into the switch, and 2 sets of built-in cables for ready connection to 2 PCs. The switch provides many easy-to-use features and is perfect for home and the small business.
Cost-effective for PC Users
If you have 2 PCs and need to use them at the same time,the DKVM-2KU saves you the money and space by allowing you to control your 2 computers from a set of keyboard, monitor and mouse. Or, you may have a better,bigger monitor and want to connect both PCs to it, the DKVM-2KU allows you to do this. 2 sets of cables are attached to the KVM switch ready for use, dispensing you of the need to prepare separate cables and connect them to the switch.
Versatile Functions
The DKVM-2KU utilizes advanced microprocessor emulation to intelligently manage each KVM port. This allows simultaneous boot-up of all attached PCs. Auto scan, audible feedback, and keyboard "Hot Keys" make the DKVM-2KU simple to use and manage. There is also a control button located on the front panel that allows you to switch between the PCs.
Status Save and High Resolution Support
The DKVM-2KU supports VGA, SVGA, and MultiSync monitors at up to 2048 x 1536 resolution at 72Hz refresh rate. Support for Microsoft IntelliMouse is provided.
USB 2.0 Port to Share USB Devices
A USB 2.0 port is built into this KVM switch to allow connection to a USB-supported device or a USB hub. This allows you to share your USB printer, scanner, card reader or other devices among the 2 connected PCs. This USB port is also backward compatible with USB 1.1 devices. By connecting this USB port to a USB hub, you can also share more than 1 USB device with your 2 PCs. In the Auto Scan mode, the USB device switching will come with the computer scan sequence.
Features:
- 2 KVM ports to control of 2 computers from a single set of keyboard, monitor and mouse
- Built-in USB 2.0 port to share a USB device between the 2 PCs
- Auto scan mode sequences through PCs
- Audible feedback for confirmation while switching between PCs
- Front panel LED indicators for selected PC
- Switching between PCs using front panel SELECT button or Hot Key command
- Supports SVGA, VGA, and multi-sync monitors
- Video resolutions up to 2048 1536
- Successfully tested with following mice: Microsoft IntelliMouse, IntelliMouse with IntelliEye, and IntelliMouse Explorer, Logitech FirstMouse+, Ligitech MouseMan+
