Performance
| Maximum transfer distance |
30000 m |
| Fiber mode structure |
Single-mode |
Power
| Input current |
1.5 A |
| External power adapter |
Y |
Networking
| Auto MDI/MDI-X |
Y |
| Duplex system |
Half, Full |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Wireless technologies |
Wired |
| Transfer rate (Mbps) |
100 Mbit/s |

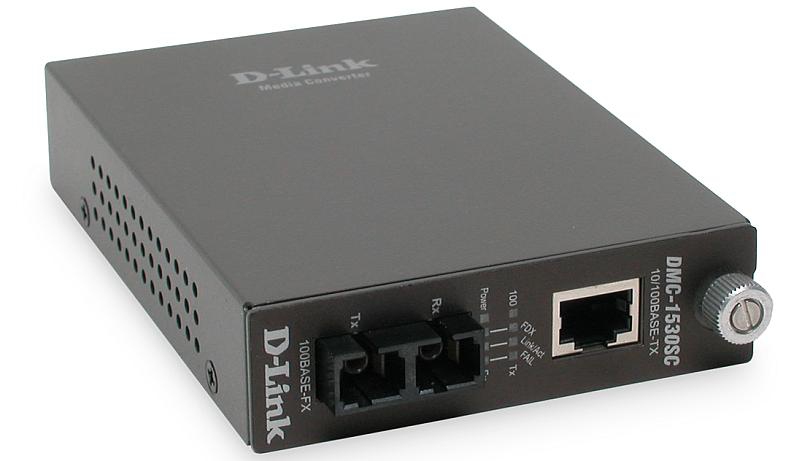

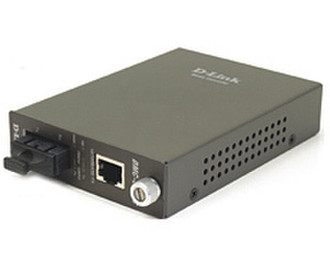

DMC-1530SC, Fast Ethernet, SM, SC, 1 x 10/100BASE-TX, 1 x 100BASE-FX, 30km
<b>Smart Media Converter - Fast Ethernet Twisted-pair to Fast Ethernet Single-mode Fiber</b>
This converter provides intelligent functions like LLCF , LLR, store-and-forward mechanism, back-pr essure and 802.3x flow control. It converts 10/100Mbps 10BASE-T/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet single-mode fiber signals. Maximum fiber cable distance is 30 km. 1 RJ-45 twisted-pair port and 1 fiber port (SC connector) are provided.
