Power
Power consumption (max) |
16.5 W |
Power over Ethernet (PoE) |
Y |
Antenna
Number of connectors |
4 |
Antenna connector type |
N-Type |
Antenna gain level (max) |
7 dBi |
Antenna type |
Omni-directional |
Antennas quantity |
4 |
Performance
Web-based management |
Y |
Frequency band |
2.4 - 2.4835, 5.18 - 5.24, 5.28 - 5.32, 5.5 - 5.7, 5.745 - 5.825 GHz |
5 GHz |
Y |
Wireless isolation |
Y |
VLAN support |
Y |
Automatic channel selection |
Y |
Ethernet LAN data rates |
1000 Mbit/s |
2.4 GHz |
Y |
Security
MAC address filtering |
Y |
Number of SSID support |
32 |
Additionally
Ethernet LAN (RJ-45) ports quantity |
2 |
Transfer rate (Mbps) |
1167 Mbit/s |
867+300 Mbps, 2x LAN, WPA/WPA2, IP67, POE, VLAN, 250 x 220 x 45 mm

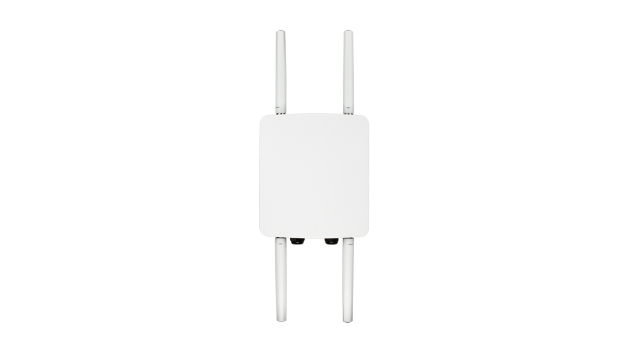

The DWL-8710AP is an outdoor dual-band Wireless AC1200 Access Point designed specifically for deployment in business and campus environments. Highly manageable and capable of blazing speeds, the DWL-8710AP integrates seamlessly into an existing network infrastructure and can be easily scaled to meet future demands.
<b>Convenient Installation</b>
The DWL-8710AP can be installed on a wall or pole with the included mounting brackets. The DWL-8710AP is IP67-compliant and is designed to operate in harsh outdoor environments and temperatures ranging from -30 up to 60˚C. For easy installation, it has integrated 802.3at Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.
<b>Superior Wireless AC Performance</b>
The DWL-8710AP delivers reliable, high-speed wireless performance using the latest 802.11ac standards. Band steering ensures 5GHz-enabled clients can achieve their maximum performance without being bottle-necked by legacy 2.4 GHz 802.11b/g/n clients. AC SmartBeam™ technology enables the DWL-8710AP to have even greater reach than ever before.
<b>Simultaneous Dual-Band Wireless</b>
Delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps over the 2.4 GHz band, and 867 Mbps over the 5 GHz band
<b>Broadcast on 32 SSIDs Simultaneously</b>
Supports up to 32 SSIDs, 16 per radio, including Station Isolation
<b>Centrally Manage your Wireless Network</b>
When working in conjunction with a D-Link Unified Switch or Wireless Controller, the DWL-8710AP, like other D-Link Unified Access Points, may be centrally managed. This allows up to 1,024 D-Link Unified Access Points to be deployed and managed easily and efficiently. This managed wireless solution offers self-organising, self-optimising and self-healing network capabilities to increase the stability of the entire wireless network.
