Operational conditions
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
Weight & dimensions
| Depth |
177.8 mm |
| Weight |
272.155 g |
| Width |
104 mm |
| Height |
30.8 mm |
| Package depth |
274.32 mm |
| Package weight |
1270.06 g |
| Package width |
208.28 mm |
| Package height |
66.04 mm |
Video
| Maximum resolution |
2048 x 1536 pixels |
Additionally
| Operating temperature range (T-T) |
0 - 50 °C |

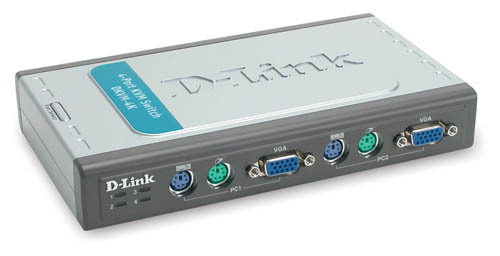

KVM Switch for 4 PCs
The DKVM-4K 4-port KVM switch is a cost-effective KVM solution for office users and business. This switch allows you to easily control 4 different PCs from a single set of keyboard, mouse, and VGA monitor. The switch provides many easy to use features and is perfect for MIS, network administrators and business users.
Cost-effective for PC Users
If you need to control several computers at the same time (such as in a computer room), the DKVM-4K saves you the money and space by allowing you to control you're the computers from a set of keyboard, monitor and mouse. You may have a better, bigger monitor and want to connect all 4 PCs to it, the DKVM-4K allows you to do this.
High Performance and Easy Management of Port Traffic/Server Control
The DKVM-4K allows you to manage port traffic and boot up the attached PCs. A control button located on the top of the DKVM-4K gives you one touch access to your attached PCs. Featuring hot-plug, auto-scan, keyboard hot-keys and audible feedback, this switch makes it simple to manage all of your computers.
Status Save and High Resolution Support
The DKVM-4K supports VGA, SVGA, and MultiSync monitors at up to 2048 x 1536 resolution. Support for Microsoft IntelliMouse is provided.
Product Features:
Bus-power support (no external power connection required)
Allows control of 4 PS/2 style computers from a set of single keyboard, mouse, monitor
Keyboard and mouse emulation for error-free boot-up
VGA, SVGA and Multisync monitor resolution 2048 x 1536 support
Microsoft IntelliMouse and Microsoft IntelliMouse Explorer support
PS/2 style keyboard, mouse support
Switch among the 4 PCs via "Select"push button and Hot-Key commands
Auto-scan mode for convenience automatic switching (Scan boot up PCs)
Audible feedback when switching
4 LED indicators for each connected computer
Automatic recall of CAPS LOCK, NUM LOCK and SCROLL LOCK Key's status for each computer
Uses inexpensive, commonly available cables
