Performance
| Alarm input channels |
16 |
| Analog signal format system |
PAL, NTSC |
| Playback controls |
Y |
| Video input channels |
16 |
| Supported network protocols |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Built-in processor |
Y |
| Maximum frame rate |
30 fps |
| PTZ control (Pan/Tilt/Zoom) |
Y |
| DHCP client |
Y |
| Split screen |
Y |
| Static IP |
Y |
Ports & interfaces
| BNC video input |
Y |
| BNC audio input |
Y |
| BNC audio output |
Y |
| BNC video output |
Y |
| VGA (D-Sub) output ports |
1 |
| RS-232 interface |
Y |
| RS-485 ports |
1 |
| eSATA |
Y |
Features
| Buzzer off |
Y |
| Rack mounting |
Y |
System requirements
| Mobile operating systems supported |
iOS, Windows Phone, Android |
Storage
| Maximum storage capacity |
64 TB |
| Hard drive interface |
Serial ATA, eSATA |
Power
| Power consumption (max) |
40 W |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Выход HDMI |
Y |

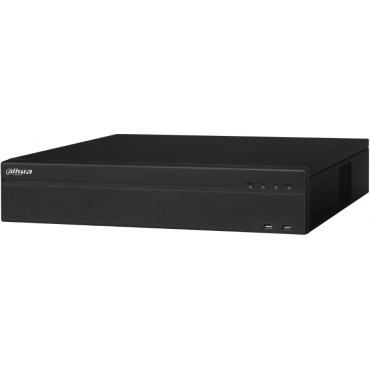

Embedded processor, LINUX, 16 Channel, 1080P/720P HDCVI, NTSC/PAL, 2 x Gigabit LAN, 2U, 4 x USB, 7.5kg
- Support HDCVI/AHD/Analog/IP Video input
- H.264 dual-stream video compression
- All channel 1080P realtime recording
- HDMI 1/VGA simultaneous video output,HDMI2/VGA(HDMI1) independent video output
- 16 channel synchronous realtime playback, GRID interface & smart search
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
- ONVIF Version 2.4.1 conformance
- 3D intelligent positioning with Dahua PTZ dome camera
- Support 8 SATA HDDs up to 64TB,4 USB(2 USB3.0)
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
- Advanced intelligent functions: Tripwire, Intrusion, Abandoned/Missing, Scene Change, Face Detection, People Counting, Smart Tracking
