Indoor unit
| Noise level (indoor unit) |
58 dB |
| Indoor unit dimensions (WxDxH) |
770 x 198 x 283 mm |
| Indoor unit weight |
7000 g |
| Indoor unit type |
Wall-mountable |
| Indoor units quantity |
1 |
Outdoor unit
| Outdoor unit dimensions (WxDxH) |
658 x 275 x 550 mm |
| Outdoor unit weight |
30000 g |
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
62 dB |
Technical details
| Cooling capacity in watts (min) |
1300 W |
| Cooling capacity in watts (max) |
3800, 3300 W |
| Heating capacity in watts (min) |
1300 W |
| Heating capacity in watts (max) |
4800, 3400 W |
| Cooling capacity (min) |
4400 BTU/h |
| Cooling capacity (max) |
13000, 11300 BTU/h |
| Heating capacity (min) |
4400 BTU/h |
| Heating capacity (max) |
16400, 11900 BTU/h |
| Refrigerating medium weight |
1000 g |
| Type |
Split system air conditioner |
| Seasonal efficiency rating (cooling) (SEER) |
5.66 |
| Compressor type |
Rotary |
| Refrigerating medium |
R410A |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) |
4.14 |
Power
| Power consumption (cooling) (min) |
290 W |
| Power consumption (cooling) (max) |
1300, 980 W |
| Power consumption (heating) (min) |
290 W |
| Power consumption (heating) (max) |
1290, 930 W |
| Annual energy consumption (cooling) |
209 kWh |
| Annual energy consumption (heating) (Average heating season) |
961 kWh |
| Energy efficiency class (cooling) |
A+ |
| Energy efficiency class (heating) (Average heating season) |
A+ |
Sound emission
| Noise level (medium speed) |
29 dB |
| Noise level (low speed) |
27 dB |
| Noise level (high speed) |
58 dB |
Additionally
| Cooling energy efficiency |
3.37 |
| Heating energy efficiency |
3.76 |

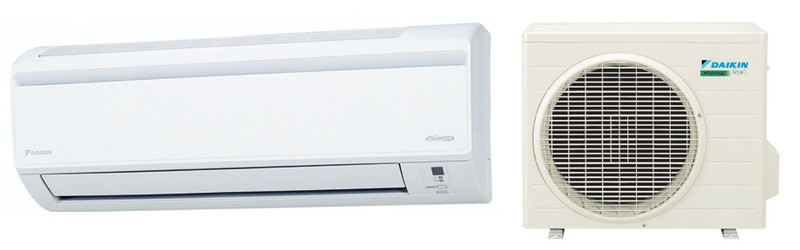

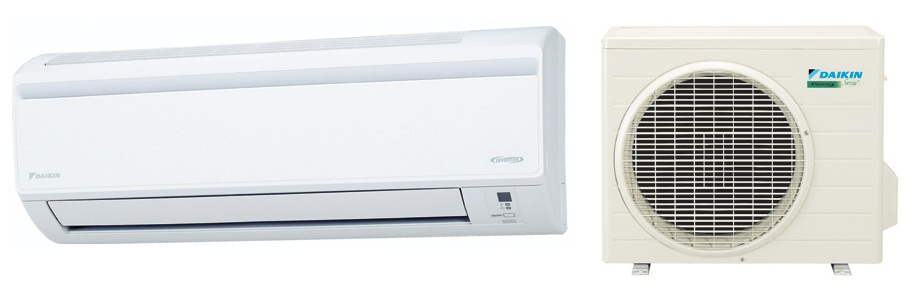

Daikin AX35JV. Energy efficiency class (cooling): A+, Energy efficiency class (heating) (Average heating season): A+, Annual energy consumption (cooling): 209 kWh. Noise level (indoor unit): 58 dB, Indoor unit type: Wall-mountable, Indoor unit weight: 7 kg. Noise level (outdoor unit): 62 dB, Outdoor unit weight: 30 kg, Outdoor unit dimensions (WxDxH): 658 x 275 x 550 mm. Noise level (low speed): 27 dB, Noise level (medium speed): 29 dB, Noise level (high speed): 58 dB
