Technical details
| Operating temperature (heating) (T-T) |
-15 - 20 °C |
| Operating temperature (cooling) (T-T) |
-10 - 46 °C |
| Type |
Air conditioner outdoor unit |
| Refrigerating medium |
R410A |
| Hose length (max) |
20 m |

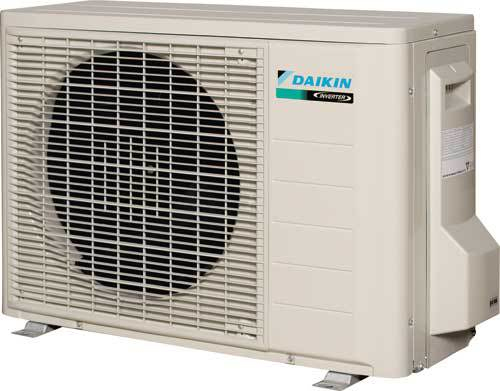

Outdoor unit
| Outdoor unit width |
765 mm |
| Outdoor unit depth |
285 mm |
| Outdoor unit height |
550 mm |
| Outdoor unit weight |
35000 g |
| Heating airflow (outdoor unit) |
1866 m³/h |
| Cooling airflow (outdoor unit) |
2070 m³/h |
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
62 dB |
34.5/31.1m3/min, 62dB(A), 35kg
The new Daikin Emura - an icon of contemporary climate control
Daikin Emura once again proves that intelligent design can look great and deliver superior energy efficiency in climate control. So the indoor environment is optimised and architects, engineers and home owners get the ideal solution.
Air-to-air heat pumps extract 80% of their output energy from a surprising renewable source: ambient air, effectively transferring existing heat. High energy efficiency is obtained by using advanced energy-saving technologies such as re-designed swing compressors.
- Stylish finish in silver, anthracite or pure matt white;
- Whisper quiet sound levels, down to 19 dB(A);
- Ensures maximum comfort in every situation;
- Wide operating range: -10 to 46°C for cooling and -15 to 20°C for heating;
- Can be controlled remotely.
Efficient & Smart
- Curved front panel;
- Sleek, elegant appearance;
- Smooth operation;
- Intelligent sensors for optimal performance;
- Large flaps as key design element.
2-area intelligent eye
The two-area intelligent eye sensor controls comfort in two ways. If the room is empty for 20 minutes, it changes the set point to start saving energy. As soon as someone enters the room, it immediately returns to the original setting. The intelligent eye also directs air flow away from people in the room to avoid cold draughts.
3D air flow
To ensure a harmonised temperature throughout the room, the Daikin Emura’s 3D air flow system combines vertical and horizontal auto-swing creating an even distribution of air throughout the room to the corners of even large spaces.
Comfort mode
Draught-free operation improves comfort. When cooling, the flap positions itself horizontally to prevent cold airflow from being blown directly onto the body. When heating, the flap turns vertically downwards to drive warm air to the bottom of the room.
Clean air
A sophisticated titanium apatite photo-catalytic air purification filter traps even microscopic airborne dust particles, absorbs organic contaminants such as bacteria and viruses and even breaks down odours.
Night set mode
Rapid changes in room temperature can disturb your sleep. To avoid this, Daikin Emura prevents overheating or overcooling during the night. If the timer is switched on, the unit will automatically set the temperature to 0.5°C warmer when cooling and to 2°C cooler when warming.
