Ports & interfaces
| Optional connectivity |
Serial (RS-232), Ethernet |
Other features
| Networking features |
Ethernet, Fast Ethernet |
| Fonts included |
Draft, Draft Copy, Quadrato, Courier |
| Line density |
12 lpi |
| Recommended media weight |
60 - 120 g/m² |
| Print technology |
Dot Matrix |
Paper handling
| Continuous media weight |
60 - 120 g/m² |
| Cut sheet media weight |
80 - 120 g/m² |
| Continuous paper width range |
76 - 254 mm |
| Paper feed |
Push tractor, Pull tractor, Manual |
Printing
| Maximum print speed (draft) |
413 cps |
| Maximum print speed |
500 cps |
| Character density |
20 cpi |
| Maximum print speed (LQ) |
77 cps |
| Maximum number of copies |
5 copies |
Print technology
| Print direction |
Bi-direction |
| Print head |
9-pin |
Endurance
| Maximum duty cycle |
14000 pages per month |
| Ribbon life |
4 million characters |
| Print head life |
300 million characters |
Print quality
| Maximum printing width (columns) |
80 |
Additionally
| Wireless technologies |
Wired |
Dot Matrix Printer, 80 columns, 9-pin printhead, Max. 144 x 240dpi, 64kB Input Buffer, Parallel / Ethernet,Serial (RS-232), 10 cpi: Fastest Draft: 500 cps, Draft: 413 cps, Copy Draft 310 cps, NLQ 77 cps, Printhead Life: 300 million characters, Consumables: 4 million chars (black), Number of Copies: original + 5 copies, 54dB, 9kg
- High quality 9 and 24-pin printhead.
- Front feed for easy paper loading and reliable paper transport.
- Zero tear, paper park, automatic top of form for easeof use.
- Wide range of emulations for easy connection to awide range of hosts.
- Manual feed: front in, front out; ideal for cheques, statements, registration cards.

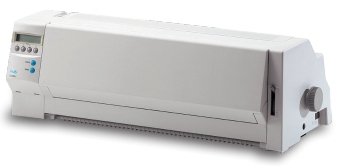

DASCOM‘s mid range serial matrix printers include the T2240/T2340 series products. These printers feature great ergonomics as the paper is front loaded rather than installed in the rear. With automatic top of form and zero tear the printers are easy to set up with no wasted forms.
The products are ideal for back office applications which include retail, local government, hospitals, warehousing and distribution. They include printing labels, shipping documents and multipart forms.
Both 9 and 24 pin models are available for different print quality requirements; narrow and wide format machines offer the choices of small footprint and diverse range of forms.
In line with market demands, the new printers are quieter and easier to use than competitive products in their class. All products support graphics and barcodes.
