Power
| Input voltage |
4.2 - 5.25 V |
Scanning
| Pitch reading angle |
-40 - 40 ° |
| Decoding standards |
1D, 2D, Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR Code, QR Code, EAN/JAN, GS1 DataBar, MacroPDF, MicroPDF417, PDF417, UPC A/E, Postal |
| Tilt reading angle |
0 - 180 ° |
| Sensor type |
WVGA |
| Wavelength |
650 nm |
| Yaw reading angle |
-40 - 40 ° |
| Optical sensor resolution |
752 pixels |

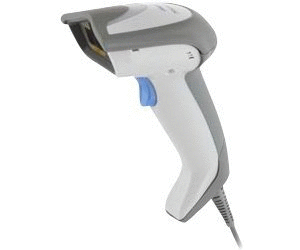

Gryphon I GD4430, Kit, KBW, 2D, White (Incl. Scanner and Cable)
The Gryphon™ 4000 series represents the premium level of data collection devices from Datalogic ADC for general purpose applications. Designed with people in mind, the Gryphon™ I GD4400 imager blends advanced 2D reading with motion sensing technology, producing a user-friendly device with outstanding performance.
Perfect for both handheld and presentation reading, the Gryphon I GD4400 imager features Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user’s desired preferences.
User comfort is maximized with the Gryphon I GD4400 imager’s steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The Gryphon I GD4400 imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.
The Gryphon I GD4400 2D omnidirectional reader eliminates the need for separate equipment with signature capture and document scanning capabilities. Its enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.
As a corded device, the Gryphon I GD4400 imager is available in two different interface models: a multi-standard interface for connection to the host via USB (COM and Wedge Emulation), RS-232 or Wedge Emulation or an IBM 46XX interface model, including USB and RS-232 interfaces.
