Scanning
| Yaw reading angle |
0 - 40 ° |
| Optical sensor resolution |
752 pixels |
| Pitch reading angle |
0 - 40 ° |
| Decoding standards |
GS1 DataBar, EAN/JAN Composites, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites |
| Tilt reading angle |
0 - 180 ° |
Power
| Power consumption |
160 mA |
| Input voltage |
4.2 - 5.25 V |
Performance
| Light levels (direct sunlight) |
0 - 100000 lx |

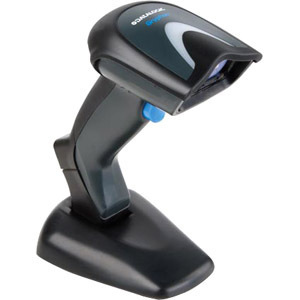

Gryphon I GD4430, 2D Imager, USB/RS-232/KBW/WE Multi-Interface, Health Care
The Gryphon™ 4000 series represents the premium level of data collection devices from Datalogic Scanning for general purpose applications. Designed with people in mind, the Gryphon™ I GD4400-B All-in-One imager blends advanced 2D decoding with motion sensing technology, producing a user-friendly device with outstanding performance.
Featuring Datalogic’s Motionix™ motion-sensing technology, the Gryphon I GD4400-B imager senses the actions of the operator to automatically switch the device into handheld or presentation mode scanning. When picked up or set down, Motionix technology transitions the device seamlessly, eliminating the need to scan a label or rely on a mechanical switch.
As an All-in-One device, the Gryphon I GD4400-B scanner’s permanent tilting stand is joined with an ergonomic handheld reader for handheld and presentation reading. The All-in-One imager adjusts to any angle to fit individual scanning preferences. The cable connection is positioned well above the counter to avoid damage caused by spills.
User comfort is maximized with the Gryphon I GD4400-B imager’s steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The Gryphon I GD4400-B imager provides snappy, omnidirectional reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. For mobile marketing or ticketing applications, this scanner also offers excellent reading performance on bar codes from mobile devices.
With enhanced optics, the Gryphon I GD4400-B imager boasts improved motion tolerance and high speed imaging to read fast moving codes. This reader also eliminates the need for separate equipment for signature capture and document scanning applications.
