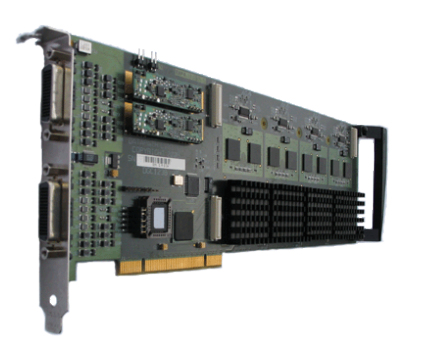

Datapath Vantage4-DVI

32bit 66Mhz PCI adapter, 2048 x 1536 x 60Hz, 4 channels The Vantage4 graphics card offers the ultimate solution for high specification data wall applications. Vantage4 provides the highest performance graphics processing combined with lower power operation allowing up to 16 cards in a single PC.

Vantage4 operates with the Windows® XP Professional operating system and spreads the Windows® desktop across the multi-screen display. Windows® applications can be positioned and sized anywhere on the desktop. The Windows® operating system sees the multi-screen display as one large desktop.

- Four port PCI graphics adapter
- Four Delta Chrome GPU’s each with 32MB DDR 250Mhz frame buffers (Total 128MB)
- Four analog VGA outputs supporting up to 2048 x 1536
- Four DVI outputs up to 1600 x 1200 and 1920 x 1080 with reduced blanking
- Support for 1400 x 1050 resolution
- Four TV outputs. PAL/NTSC/S-video, HDTV. With high quality flicker filters
- Support for up to 16 cards providing outputs for up to 64 displays
