Performance
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Modulation |
16-QAM, CCK, 64-QAM, OFDM, BPSK, DSSS, QPSK |
| 2.4 GHz |
Y |
| Frequency band |
2.4 - 5.85 GHz |
| Spread spectrum method |
DSSS |
| 5 GHz |
Y |
| Throughput |
20/40 |
Antenna
| Antennas quantity |
6 |
| Antenna gain level (max) |
4.5 dBi |
| Antenna type |
Omni-direct |
| Integrated antenna |
Y |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Y |
Power
| Power over Ethernet (PoE) |
Y |
| Input voltage |
12 V |
Additionally
| Transfer rate (Mbps) |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
3 |
Wi-Fi 802.11 a/b/g/n, 2.4-5.850 GHz, Gigabit Ethernet, 4.5 dBi, PoE, 15W, 760g, White
<b>Designed for speed</b>

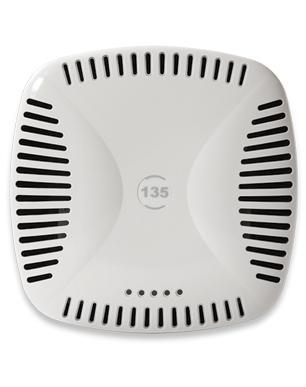

Build your wireless network for no-compromise data, voice and video performance with PowerConnect™ W-AP134 and W-AP135 WiFi indoor APs.
<b>Wire-like performance</b>
Blur the lines between wired and wireless performance. With up to 450 Mbps data rate per radio, Dell™ PowerConnect W-AP134 and W-AP135 high-speed indoor access points deliver incomparable 802.11n WiFi performance for your wireless LAN.
The multifunction W-AP134 and W-AP135 can be configured through the Dell PowerConnect W-Series Mobility Controller to provide wireless LAN access with:
- Part-time air monitoring
- Dedicated air monitoring for a wireless intrusion prevention system (IPS)
- Remote AP (RAP) functionality
- Secure Enterprise Mesh that provides the security and reliability of a wired LAN
Both APs feature a 10/100BASE-T Ethernet interface and each can operate from standard 802.3af power-over- Ethernet (PoE) sources or a 12-volt DC power supply.
Two antenna options are available. The W-AP134 has external antenna interfaces while the W-AP135 features the same radios with internal antennas. Both are built to provide years of trouble-free operation and are backed by an extended lifetime warranty.
<b>State-of-the-art RF management</b>
Build your network to better server all users with Dell’s Adaptive Radio Management (ARM) technology. By adjusting to how Wi-Fi clients interact, ARM helps ensure that data, voice and video applications have sufficient network resources to operate properly. Key ARM features include:
- Spectrum load balancing that uniformly distributes clients across channels in high-density environments
- Noise awareness, which dynamically shifts clients away from channels hampered by outside interference
- Band-steering, which enables APs with both radios available to dynamically transfer clients away from crowded bands and allow users to define client ratios across different bands
- Airtime fairness that delivers equal airtime access to all Wi-Fi clients, regardless of the client type, wireless chip or operating system
<b>High-definition video and toll-quality voice</b>
Deploy HD-quality video and toll-quality voice across your wireless infrastructure with PowerConnect™ W-Series APs and centralized controllers. Key video and voice features include:
- Dynamic multicast optimization technology that supports more than 15 live, high-definition multicast video streams per radio.
- ARM technology that is designed to:
- Automate channel assignments
- Increase capacity as coverage expands
- Protect against neighboring wireless interference
- Ensure airtime fairness for clients
- Help maintain balanced client distribution across 2.4/5GHz frequency bands and multiple 802.11 channels
- Device fingerprinting technology that helps secure reliable, high-quality voice over Wi-Fi™ without disabling automated channel management
<b>Powered by Aruba Networks</b>
Aruba Networks® ArubaOS™ serves as the operating system and application engine for all Dell™ PowerConnect W-Series controllers, access point and Guest Access System devices.
