Management features
| Multicast support |
Y |
| System event log |
Y |
Data transmission
| MAC address table |
128000 entries |
| Store-and-forward |
Y |
| Switching capacity |
1280 Gbit/s |
| Number of VLANs |
4094 |
Operational conditions
| Heat dissipation |
955.36 BTU/h |
Networking
| Link aggregation |
Y |
| 10G support |
Y |
| Full duplex |
Y |
Performance
| Packet buffer memory |
9 MB |
| Physical stacking (units) |
6 |
| Stackable |
Y |
Ports & interfaces
| Installed QSFP+ modules quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
Protocols
| Management protocols |
SMIv1, SNMPv1, SNMPv2, IP, TCP, UDP |
| Supported network protocols |
UDP, IPv4, ICMP, TCP, ARP, NTPv3, CIDR, IPv6 |
Power
| Power consumption (max) |
123 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

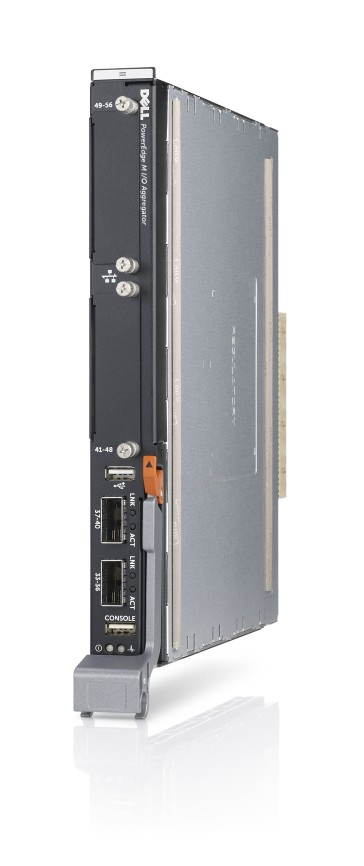

I/O Aggregator - Switch, Managed, 32x 10GBase-KR, 2x 40 Gigabit QSFP+ (breakout compatible), plug-in module
Build your ideal data center.
Optimize network performance and maximize the benefits of convergence with the Dell™ PowerEdge™ M I/O Aggregator, part of a complete Active data center solution.
Consolidate through virtualization.
PowerEdge M I/O Aggregator extends the consolidation benefits of virtualization by replacing multiple GbE NICs, mezzanine cards, and switches with fewer, higher-bandwidth 10GbE NICs and I/O modules per blade chassis.
Maximize your bandwidth.
Take advantage of 10GbE capability to meet the bandwidth demands of multi-core CPUs and to build your server capacity without overprovisioning your data center.
Offers efficient installation and easy expandability.
With no-fuss installation and simple network integration, the Dell PowerEdge™ I/O Aggregator is ready to work right out of the box.
Enables flexible connectivity for maximum versatility.
Optimize your IT schedule with an aggregator that offers simple deployment and plug-and-play connectivity, creating a nimble and flexible data center.
Helps conserve space and reduce power consumption.
Consolidate space and help improve power efficiency with the PowerEdge M I/O Aggregator, offering exceptional performance at an outstanding value.
Global services and support
Dell Services can help reduce IT complexity, lower costs and eliminate inefficiencies by making IT and business solutions work harder for you. The Dell Services team delivers distinctive capabilities, including full data migration solutions to facilitate consolidation from multiple file systems. Dell takes a holistic view of your needs and designs solutions for your environment and business objectives, and uses established delivery methods, local talent and in-depth domain knowledge to help lower your total cost of ownership.
