Storage
| Hard drive size |
3.5 " |
| Hot-swap |
Y |
| Hard drive capacity |
500 GB |
| Maximum storage capacity |
8 TB |
| Total storage capacity |
1000 GB |
| Number of hard drives installed |
2 |
| Internal drive bays |
4 |
Processor special features
| Intel Fast Memory Access |
N |
| Processor ARK ID |
42927 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
1 |
| Intel 64 |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
Processor
| Physical Address Extension (PAE) |
36 bit |
| Maximum number of PCI Express lanes |
1 |
| Processor code |
SLBLJ |
| Processor package size |
37.5 mm |
| Processor cache type |
Smart Cache |
| Memory channels supported by processor |
Dual |
| Processor operating modes |
64-bit |
| ECC supported by processor |
Y |
| Tcase |
72.7 °C |
| Bus type |
DMI |
| Memory types supported by processor |
DDR3-SDRAM |
| Supported instruction sets |
SSE4.2 |
| Maximum internal memory supported by processor |
32 GB |
| Processor frequency |
2.4 GHz |
| Stepping |
B1 |
| Embedded options available |
Y |
| FSB Parity |
N |
| Number of Processing Die Transistors |
774 M |
| PCI Express configurations |
4x4, 2x8, 1x16 |
| Conflict Free processor |
N |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Memory clock speeds supported by processor |
1333, 1066, 800 MHz |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor boost frequency |
2.8 GHz |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Processor cores |
4 |
| Thermal Design Power (TDP) |
95 W |
| CPU multiplier (bus/core ratio) |
18 |
| Processor lithography |
45 nm |
Memory
| Memory clock speed |
1333 MHz |
| Maximum internal memory |
32 GB |
| Memory slots |
6x DIMM |
| Internal memory type |
DDR3-SDRAM |
| ECC |
Y |
| Internal memory |
4 GB |
Ports & interfaces
| VGA (D-Sub) ports quantity |
2 |
| Serial ports quantity |
1 |
Power
| Power supply |
350 W |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x8 slots |
1 |
| PCI Express x16 slots |
1 |
Design
| Optical drive type |
DVD-RW |
| Chassis type |
Rack (1U) |
Graphics
| Maximum graphics adapter memory |
8 MB |
Additionally
| InTru™ 3D Technology |
N |
| Graphics |
G200eW |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
296 mm² |
| Chipset |
Intel 3420 |
| Ethernet LAN (RJ-45) ports quantity |
2 |

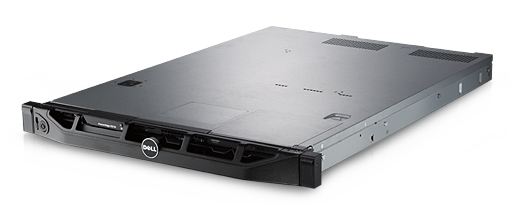

PowerEdge R310, Intel Xeon X3430 (2.4 GHz), 4GB DDR3, 2x 500GB HDD, Matrox G200eW
Easy to Set Up
An ideal rack for small businesses and space-constrained environments, the Dell PowerEdge R310 features a compact chassis, advanced systems-management capabilities and an optional interactive LCD to help simplify setup and maintenance.
Easy to Manage
The Dell PowerEdge R310 lets you focus on running your business. The optional advanced embedded management engine, the optional Lifecycle Controller, automates common management tasks and enables zero-media, low-touch deployment that is efficient, secure, and user-friendly.
- The optional Dell Lifecycle Controller is integrated on the server and can simplify administrator tasks by performing a complete set of provisioning functions such as system deployment, system updates, hardware configuration and diagnostics from a single intuitive interface called Unified Server Configurator in a pre-OS environment. This eliminates the need to use and maintain multiple pieces of disparate CD/DVD media.
- With Dell Lifecycle Controller server deployment automation, the R310 is up and running fast. Also part of the Dell OpenManage portfolio is the Dell Management Console, which is included with every Dell server and provides IT administrators with a consolidated console view of their IT infrastructure.
Business Value
You are serious about your business and you need a server that can handle serious business. The PowerEdge R310 rack server has the right balance of performance, enterprise-class features and business value to meet the needs of small to midsized businesses and branch offices alike.
- The PowerEdge R310 has price/performance that includes options for full redundancy in power supplies and hot-swap hard drives.
- The processor options and memory configurations are balanced to run typical business applications such as Windows® Small Business Server, Business Center Essentials, SQL Workgroup/Standard, Oracle® 11g Standard, VMware® , Active Directory® , SharePoint® , and file/print.
- Keep your data safe with multiple RAID options and up to four 2.5" (6 cm) or 3.5" (9 cm) hard drives.
Customer-Inspired Design
By listening to and focusing on the details, we have delivered on our customers’ inspiration: simplicity of operations married with innovative design features. We see the Dell design as a revolution of system commonality and customer-inspired usability.
- All external ports, power supplies and LED lights/LCD screens are in the same location for familiar user experience as well as easy installation and deployment.
- Robust, metal hard drive carriers and organized cabling are designed to improve component access and airflow across the server
- The PowerEdge R310 streamlined design also provides quiet acoustics and an optional interactive LCD screen positioned on the front of the server for ease of monitoring.
