Processor
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
95 W |
| CPU multiplier (bus/core ratio) |
22 |
| Stepping |
B1 |
| Processor cores |
4 |
| Processor frequency |
2.93 GHz |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Maximum internal memory supported by processor |
16 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
774 M |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor boost frequency |
3.60 GHz |
| Processor cache |
8 MB |
| Maximum number of PCI Express lanes |
16 |
| Memory clock speeds supported by processor |
1066, 1333 MHz |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Tcase |
72.7 °C |
| ECC supported by processor |
N |
Processor special features
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
Y |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.2 |
| Intel Rapid Storage Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
41315 |
| Processor code |
SLBJG |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel vPro Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
Software
| Operating system architecture |
64-bit |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Networking
| Ethernet LAN data rates |
100, 1000, 10 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
N |
Memory
| Memory clock speed |
1333 MHz |
| Internal memory |
8 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory layout (slots x size) |
2 x 4 GB |
| Memory slots |
4x DIMM |
| Maximum internal memory |
16 GB |
Graphics
| Discrete graphics memory type |
GDDR5 |
| Discrete graphics adapter memory |
1024 GB |
Other features
| Hard drive capacity (group 1) |
1000 GB |
| Hard drive capacity (group 2) |
1000 GB |
| Graphics adapter family |
AMD |
| BIOS password |
Y |
| Platform |
PC |
| Compliance industry standards |
IEEE 802.3, 802.3u, 802.3ab |
| Networking features |
Gigabit Ethernet |
| Power supply type |
AC/DC |
Storage
| Total storage capacity |
2000 GB |
| Hard drive interface |
Serial ATA II |
| Number of hard drives installed |
2 |
| Hard drive speed |
7200 RPM |
Design
| Chassis type |
Tower |
| Cable lock slot |
Kensington |
Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel H57 Express |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
296 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

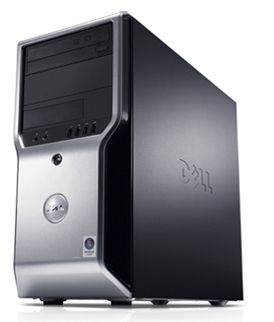

Intel Core i7-870 (2.93 GHz 8MB Cache), 8192MB DDR3, 2x 1TB SATA HDD, ATI FirePro V4800 (1GB), Gigabit Ethernet, Windows 7 Professional (64-Bit)
Workstation performance, desktop value
Looking for a cost-effective system to drive your Computer-Aided Design (CAD) productivity? Look no further. The Dell Precision™ T1500 is an excellent system providing advanced performance for workstation applications like AutoCAD®. It boasts workstationclass professional graphics card options, yet offers a costeffective combination of technologies designed to help make the most of ever-tightening budgets.
Peace of mind
Now you can have the reassurance of a workstation tested and certified to run popular CAD applications but with the value of a mainstream business desktop. Professional graphics card options from AMD and NVIDIA® are designed to deliver accurate 3D CAD model views and accelerated OpenGL® performance, and are tested in Dell Precision workstations for use with leading applications unlike their consumer counterparts. The Dell Precision T1500 offers a choice of ATI FirePro™, ATI FireMV™, and NVIDIA® Quadro® cards and, with it, peace of mind when running popular CAD applications on a complete, tested system.
Technology
Lightning-fast application performance and excellent productivity for users of demanding applications comes from the Intel® Core® i7 processors and chipset technology linked with fast 1333MHz DDR3 memory. Interactive and responsive work comes from the professional graphics cards that take advantage of amazing bandwidth of the PCI Express Generation 2 graphics slot. Important data files can be loaded and stored rapidly, or backed up locally, using RAID options when more than one hard drive is installed.
Compact and quiet
The Dell Precision T1500 offers a compact μATX chassis design that delivers on performance while operating quietly. This unobtrusive tower workstation is easy to position in an office and delivers the compute performance required. Its quiet operation helps provide an environment where creativity and interactivity can thrive.
